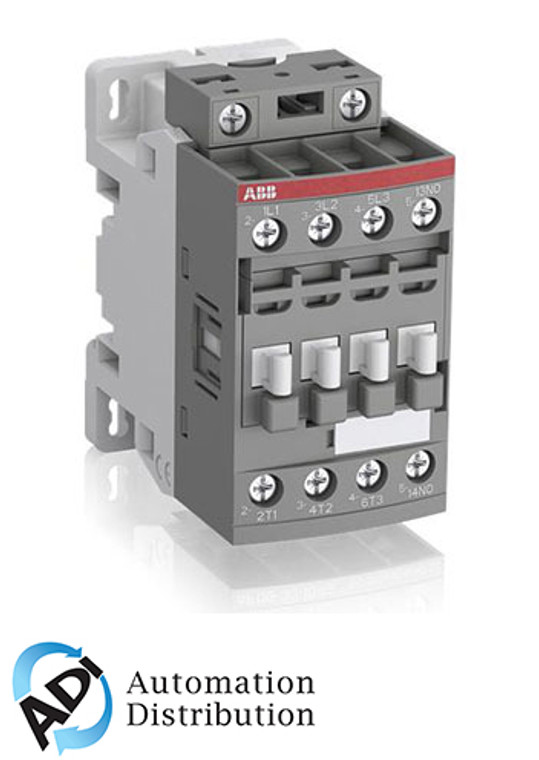

ABB AF16Z-22-00-20 Contactor

ABB AF16Z-22-00-20 AF16Z 4-Pole (2NO+2NC) Contactor, 12-20V DC Coil

ABB
SKU:
AF16Z-22-00-20
|
UPC:
3471523116702
Availability:
20 Work Days
$151.91
Condition:
New
Current Stock:
Description

ABB AF16Z-22-00-20 4-Pole Contactor, 12-20V DC Coil

The ABB AF16Z-22-00-20 is a 4-pole contactor from the ABB AF16 range with 2NO+2NC main poles and a 12-20 V DC coil. It is designed to switch power circuits up to 690 V AC / 440 V DC. Its electronic coil interface accepts a wide control voltage range, so one coil covers multiple supply voltages, and built-in surge suppression removes the need for add-on suppressors.

It is typically used for switching non-inductive or slightly inductive loads such as resistance furnaces. Automation Distribution supplies the AF16Z-22-00-20 as an authorized ABB distributor.

Key Features

  • 4-Pole (2NO+2NC) main contacts
  • Coil voltage: 12-20 V DC
  • Switches power circuits up to 690 V AC / 440 V DC
  • Built-in surge suppression, no add-on suppressor needed
  • Screw Terminals

Specifications

ManufacturerABB
Part NumberAF16Z-22-00-20
SeriesAF16
Product TypeContactor
Number of Poles4
Main Contact Configuration2NO+2NC
Coil Voltage12-20 V DC
Maximum Operational Voltage690 V AC / 440 V DC
Terminal TypeScrew Terminals

Part Number Breakdown: AF16Z-22-00-20

CodeMeaning
AF16ZContactor frame AF16Z
22Main poles: 4-Pole (2NO+2NC)
00Auxiliary contacts: none
20Coil code: 12-20 V DC

Authorized ABB Distributor. Automation Distribution supplies genuine ABB motor control products. Contact our team for technical support, cross-references or volume pricing on the AF16Z-22-00-20.

Additional Information
Series:
AF16
Number of Poles:
4
Main Contact Configuration:
2NO+2NC
Coil Voltage:
12-20 V DC
Maximum Operational Voltage:
690 V AC / 440 V DC
Terminal Type:
Screw Terminals
Spec Sheet:
View
