Description
Overview
ABB

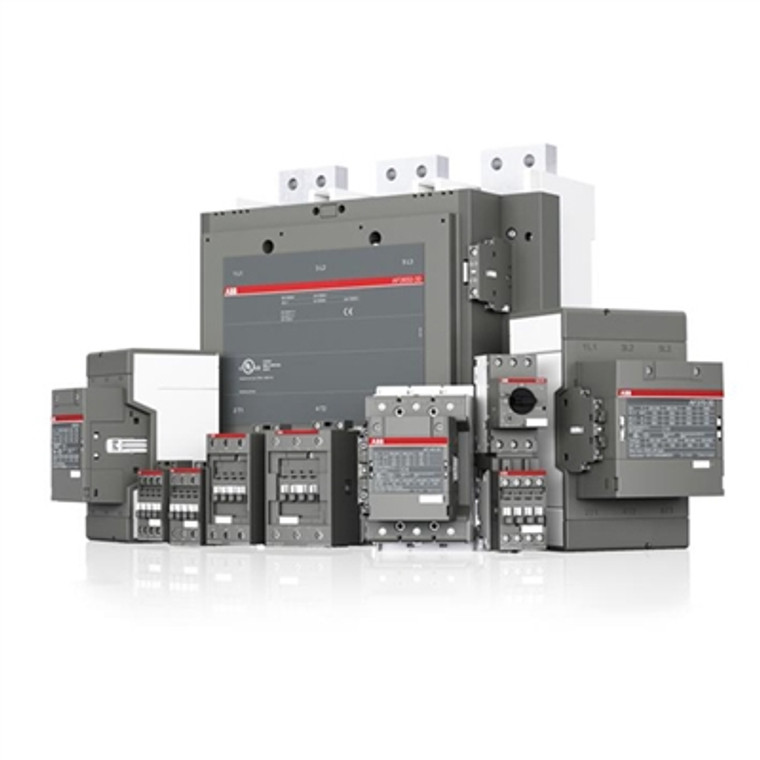

AC Mechanically Interlocked IEC Contactors, A Series
Item# AF205M-30-22-13 - MI 3P 192A 100-250VAC/DC 2/2
A Series Information
- 24~600 VAC/VDC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1650 Amps
- 3 or 4 Poles
- Touch Safe Design
- Easy Maintenance of Contacts and Coil Inspection
Specifications
Item Number:
AF205M-30-22-13
UPC:
888614237766
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Mechanically Interlocked IEC
Series:
A
Nominal Coil Voltage:
120 VAC;208 VAC;240 VAC;120 VDC;240 VDC
Coil Voltage:
100~250 VAC/VDC
Coil Type:
Magnetic
Poles:
3NO
Auxiliary Contacts:
2NO; 2NC
Termination:
Box Lug
Max HP 200/208V 3PH:
60 Horsepower
Max HP 230/240V 3PH:
75 Horsepower
Max HP 460/480V 3PH:
150 Horsepower
Max HP 575/600V 3PH:
200 Horsepower
General Purpose (AC1):
350 Amps
UL Motor Switching (AC3):
205 Amps
