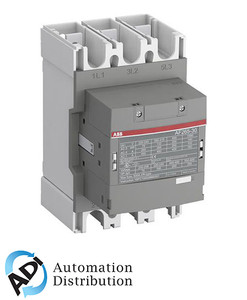

ABB AF265-30-22-13 ab af265302213 ctr,3p,248a,100-250v

(No reviews yet) Write a Review
SKU:
AF265-30-22-13
MPN:
AF265-30-22-13
Condition:
New
QN-QUOTE-REQUEST:
true
  • ABB AF265-30-22-13 ab af265302213 ctr,3p,248a,100-250v
  • ABB AF265-30-22-13 ab af265302213 ctr,3p,248a,100-250v
  • ABB Contactor AF265-30-22-13 CTR 3P 248A 100-250VAC/DC 2/2
  • ABB Contactor AF265-30-22-13 CTR 3P 248A 100-250VAC/DC 2/2
  • ABB Contactor AF265-30-22-13 CTR 3P 248A 100-250VAC/DC 2/2
$1,811.24

Description

Overview

ABB

AC Non-Reversing IEC Contactors, AF Series

Item# AF265-30-22-13

Contactor, 3-P N/O, 100-250VAC/DC, Includes 2NO & 2NC Aux Contacts, 248A

Specifications

Item Number:
AF265-30-22-13
UPC:
888614119963
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Non-Reversing IEC
Series:
AF
Coil Voltage:
100~250 VAC/VDC
Coil Type:
Magnetic
Poles:
3NO
Auxiliary Contacts:
2NO; 2NC
Termination:
Box Lug
General Purpose (AC1):
400 Amps
UL Motor Switching (AC3):
265 Amps
Max HP 200/208V 3PH:
75 Horsepower
Max HP 230/240V 3PH:
100 Horsepower
Max HP 460/480V 3PH:
200 Horsepower
Max HP 575/600V 3PH:
250 Horsepower
H x W x D:
8.86 in x 5.51 in x 7.7 in
  Net Weight:
10 lb 2 oz
