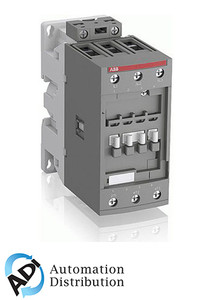

ABB AF30-30-00-13 AF30 3-Pole Contactor, 100-250V AC/DC Coil
ABB
$143.91
ABB AF30-30-00-13 3-Pole Contactor, 100-250V AC/DC Coil
The ABB AF30-30-00-13 is a 3-pole contactor from the ABB AF30 range with a 100-250 V AC/DC (50/60 Hz) coil. It is designed to switch power circuits up to 690 V AC / 220 V DC. Its electronic coil interface accepts a wide control voltage range, so one coil covers multiple supply voltages, and built-in surge suppression removes the need for add-on suppressors.
It is typically used for 3-phase motor control and power switching in industrial panels. Automation Distribution supplies the AF30-30-00-13 as an authorized ABB distributor.
Key Features
- 3-Pole main contacts
- Coil voltage: 100-250 V AC/DC (50/60 Hz)
- Switches power circuits up to 690 V AC / 220 V DC
- Built-in surge suppression, no add-on suppressor needed
- Screw Terminals
Specifications
| Manufacturer | ABB |
| Part Number | AF30-30-00-13 |
| Series | AF30 |
| Product Type | Contactor |
| Number of Poles | 3 |
| Coil Voltage | 100-250 V AC/DC (50/60 Hz) |
| Maximum Operational Voltage | 690 V AC / 220 V DC |
| Terminal Type | Screw Terminals |
Part Number Breakdown: AF30-30-00-13
| Code | Meaning |
|---|---|
| AF30 | Contactor frame AF30 |
| 30 | Main poles: 3-Pole |
| 00 | Auxiliary contacts: none |
| 13 | Coil code: 100-250 V AC/DC (50/60 Hz) |
Authorized ABB Distributor. Automation Distribution supplies genuine ABB motor control products. Contact our team for technical support, cross-references or volume pricing on the AF30-30-00-13.
- Series:
- AF30
- Number of Poles:
- 3
- Coil Voltage:
- 100-250 V AC/DC (50/60 Hz)
- Maximum Operational Voltage:
- 690 V AC / 220 V DC
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
