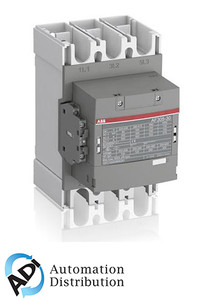

ABB AF305-40-11-12 Contactor

ABB AF305-40-11-12 AF305 4-Pole Contactor, 1NO+1NC Auxiliary, 48-130V AC/DC Coil

ABB
SKU:
AF305-40-11-12
|
UPC:
7320500505038
Availability:
25 Work Days
$2,129.14
Condition:
New
Current Stock:
Description

ABB AF305-40-11-12 4-Pole Contactor, 48-130V AC/DC Coil

The ABB AF305-40-11-12 is a 4-pole contactor from the ABB AF305 range with 1NO+1NC auxiliary contacts and a 48-130 V AC/DC (50/60 Hz) coil. It is designed to switch power circuits up to 1000 V.

It is typically used for switching non-inductive or slightly inductive loads such as heaters and resistance furnaces. Automation Distribution supplies the AF305-40-11-12 as an authorized ABB distributor.

Key Features

  • 4-Pole main contacts
  • 1NO+1NC auxiliary contacts
  • Coil voltage: 48-130 V AC/DC (50/60 Hz)
  • Switches power circuits up to 1000 V
  • Main Circuit: Bars

Specifications

ManufacturerABB
Part NumberAF305-40-11-12
SeriesAF305
Product TypeContactor
Number of Poles4
Auxiliary Contacts1NO+1NC
Coil Voltage48-130 V AC/DC (50/60 Hz)
Maximum Operational Voltage1000 V
Terminal TypeMain Circuit: Bars

Part Number Breakdown: AF305-40-11-12

CodeMeaning
AF305Contactor frame AF305
40Main poles: 4-Pole
11Auxiliary contacts: 1NO+1NC
12Coil code: 48-130 V AC/DC (50/60 Hz)

Authorized ABB Distributor. Automation Distribution supplies genuine ABB motor control products. Contact our team for technical support, cross-references or volume pricing on the AF305-40-11-12.

Additional Information
Series:
AF305
Number of Poles:
4
Auxiliary Contacts:
1NO+1NC
Coil Voltage:
48-130 V AC/DC (50/60 Hz)
Maximum Operational Voltage:
1000 V
Terminal Type:
Main Circuit: Bars
Spec Sheet:
View
