Description
Overview
Abb

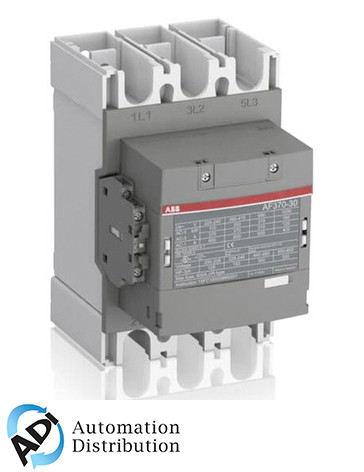

Ac Non-Reversing Iec Contactors, Af Series
Item# Af370-30-22-12
Ctr,3P,361A,48-130Vac/Dc,2/2
Specifications
Item Number: &Nbsp;
Af370-30-22-12
Upc: &Nbsp;
888614152571
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
48~130 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
2No; 2Nc
Termination:
Box Lug
General Purpose (Ac1):
600 Amps
Ul Motor Switching (Ac3):
370 Amps
Max Hp 200/208V 3Ph:
125 Horsepower
Max Hp 230/240V 3Ph:
150 Horsepower
Max Hp 460/480V 3Ph:
300 Horsepower
Max Hp 575/600V 3Ph:
350 Horsepower
H X W X D:
8.86 In X 5.51 In X 7.7 In
&Nbsp;&Nbsp;Net Weight:
10 Lb 2 Oz
