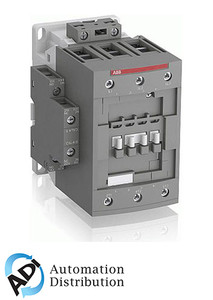

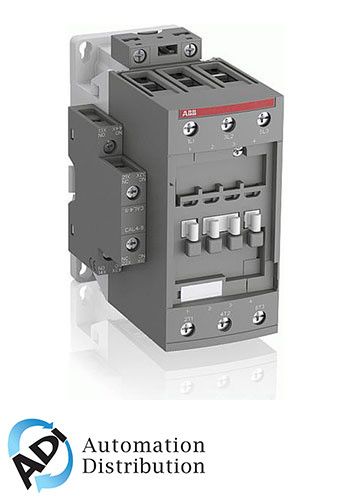

ABB AF40-30-11-11 Contactor

ABB AF40-30-11-11 AF40 3-Pole Contactor, 1NO+1NC Auxiliary, 24-60V AC/20-60V DC Coil

ABB
SKU:
AF40-30-11-11
|
UPC:
3471523132115
Availability:
Commonly stocked at factory
$208.68
Condition:
New
Current Stock:
Description

ABB AF40-30-11-11 3-Pole Contactor, 24-60V AC/20-60V DC Coil

The ABB AF40-30-11-11 is a 3-pole contactor from the ABB AF40 range with 1NO+1NC auxiliary contacts and a 24-60 V AC (50/60 Hz) / 20-60 V DC coil. It is designed to switch power circuits up to 690 V AC / 220 V DC. Its electronic coil interface accepts a wide control voltage range, so one coil covers multiple supply voltages, and built-in surge suppression removes the need for add-on suppressors.

It is typically used for 3-phase motor control and power switching in industrial panels. Automation Distribution supplies the AF40-30-11-11 as an authorized ABB distributor.

Key Features

  • 3-Pole main contacts
  • 1NO+1NC auxiliary contacts
  • Coil voltage: 24-60 V AC (50/60 Hz) / 20-60 V DC
  • Switches power circuits up to 690 V AC / 220 V DC
  • Built-in surge suppression, no add-on suppressor needed
  • Screw Terminals

Specifications

ManufacturerABB
Part NumberAF40-30-11-11
SeriesAF40
Product TypeContactor
Number of Poles3
Auxiliary Contacts1NO+1NC
Coil Voltage24-60 V AC (50/60 Hz) / 20-60 V DC
Maximum Operational Voltage690 V AC / 220 V DC
Terminal TypeScrew Terminals

Part Number Breakdown: AF40-30-11-11

CodeMeaning
AF40Contactor frame AF40
30Main poles: 3-Pole
11Auxiliary contacts: 1NO+1NC
11Coil code: 24-60 V AC (50/60 Hz) / 20-60 V DC

Authorized ABB Distributor. Automation Distribution supplies genuine ABB motor control products. Contact our team for technical support, cross-references or volume pricing on the AF40-30-11-11.

Additional Information
Series:
AF40
Number of Poles:
3
Auxiliary Contacts:
1NO+1NC
Coil Voltage:
24-60 V AC (50/60 Hz) / 20-60 V DC
Maximum Operational Voltage:
690 V AC / 220 V DC
Terminal Type:
Screw Terminals
Spec Sheet:
View
