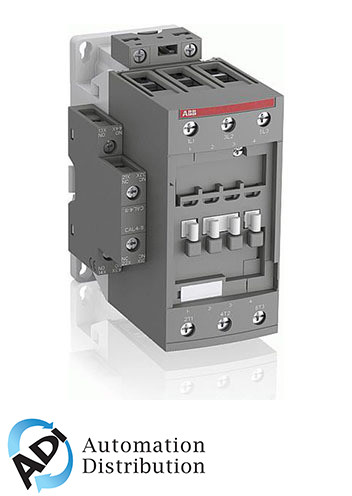

ABB AF40-30-11-12 Contactor: 3-Pole, 42A, 48-130V AC/DC with Built-in Surge Protection and Auxiliary Contacts
ABB
$341.14
The ABB AF40-30-11-12 contactor is a versatile and reliable solution for controlling power circuits up to 690 V AC and 220 V DC. Designed primarily for managing 3-phase motors and non-inductive or slightly inductive loads, this contactor features an innovative electronic coil interface that accommodates a wide range of control voltages from 48 to 130 V AC/DC. With only four coils covering control voltages between 24...500 V 50/60 Hz or 20...500 V DC, it offers flexibility and efficiency, eliminating the need for coil changes across different global standards. The AF40-30-11-12 contactor is equipped with built-in surge protection, negating the requirement for additional surge suppressors, and ensuring reliable performance even in unstable networks. Its block type design includes 3 main poles and a side-mounted auxiliary contact block with 1 N.O. + 1 N.C. contacts, compliant with IEC standards for mechanically linked and mirror contacts. This contactor is suitable for AC or DC operation and can be easily expanded with a wide range of accessories, making it a compact and adaptable choice for various industrial applications. Note that the AF..-30-..-11 series is not suitable for direct control by PLC-output.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 48 ... 130 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
