Abb
Ac Non-Reversing Iec Contactors, Af Series

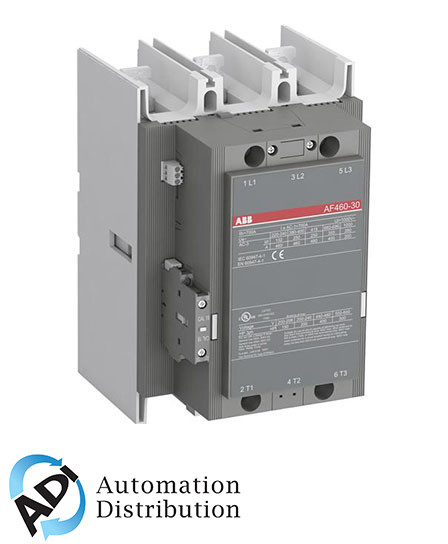

Item# Af460-30-11-69
Contactor, 3-P N/O, 48-130Vac/Dc, Ac1=650A/Ac3=480A, Rated 200Hp@240V/ 400Hp@480V, 1No/1Nc Aux Contacts
Specifications
Item Number: &Nbsp;
Af460-30-11-69
Upc: &Nbsp;
662019864433
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
48~130 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Frame Size:
Af460
Auxiliary Contacts:
1No; 1Nc
Termination:
Screw
Overload Relays:
E500Du
General Purpose (Ac1):
650 Amps
Ul Motor Switching (Ac3):
480 Amps
Max Hp 200/208V 3Ph:
150 Horsepower
Max Hp 230/240V 3Ph:
200 Horsepower
Max Hp 460/480V 3Ph:
400 Horsepower
Max Hp 575/600V 3Ph:
500 Horsepower
H X W X D:
10.94 In X 7.32 In X 8.5 In
&Nbsp;&Nbsp;Net Weight:
27 Lb 3 Oz
&Nbsp;&Nbsp;Gross Weight:
27 Lb 9 Oz
