Description
Overview
Abb

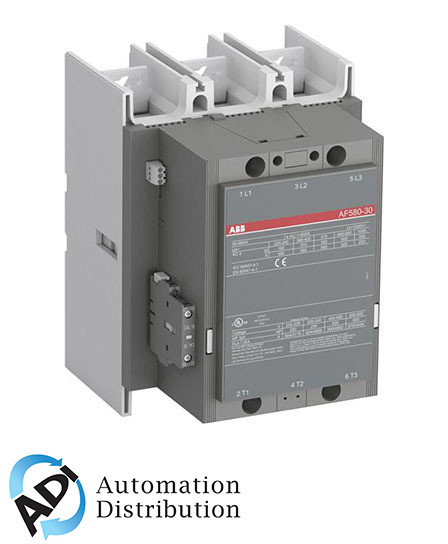

Ac Non-Reversing Iec Contactors, Af Series
Item# Af580-30-11-71
Contactor, 3-P N/O, 250-500Vac/Dc
Specifications
Item Number: &Nbsp;
Af580-30-11-71
Upc: &Nbsp;
662019817392
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
250~500 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Frame Size:
Af580
Auxiliary Contacts:
1No; 1Nc
Termination:
Screw
Overload Relays:
E800Du
General Purpose (Ac1):
750 Amps
Ul Motor Switching (Ac3):
602 Amps
Max Hp 200/208V 3Ph:
200 Horsepower
Max Hp 230/240V 3Ph:
250 Horsepower
Max Hp 460/480V 3Ph:
500 Horsepower
Max Hp 575/600V 3Ph:
600 Horsepower
H X W X D:
14.05 In X 8.27 In X 9.53 In
&Nbsp;&Nbsp;Net Weight:
35 Lb 3 Oz
&Nbsp;&Nbsp;Gross Weight:
34 Lb
