Description
Overview
Abb

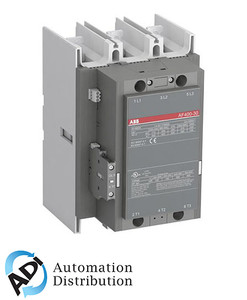

Ac Non-Reversing Iec Contactors, Af Series
Item# Af750-30-11-68
Contactor, 3-P N/O, 24-60Vdc Coil, Includes 1No &Amp; 1Nc Auxiliary Contact
Specifications
Item Number: &Nbsp;
Af750-30-11-68
Upc: &Nbsp;
662019824192
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
24~60 Vdc
Coil Type:
Magnetic
Poles:
3No
Frame Size:
Af750
Auxiliary Contacts:
1No; 1Nc
Termination:
Box Lug
Overload Relays:
E800Du
General Purpose (Ac1):
1,050 Amps
Ul Motor Switching (Ac3):
750 Amps
Max Hp 200/208V 3Ph:
250 Horsepower
Max Hp 230/240V 3Ph:
300 Horsepower
Max Hp 460/480V 3Ph:
600 Horsepower
Max Hp 575/600V 3Ph:
700 Horsepower
H X W X D:
14.05 In X 8.27 In X 9.53 In
&Nbsp;&Nbsp;Net Weight:
34 Lb 14 Oz
&Nbsp;&Nbsp;Gross Weight:
34 Lb 15 Oz
