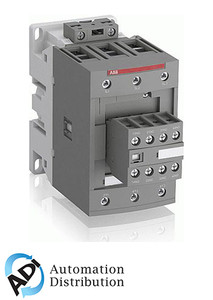

ABB AF80-30-00-12 Contactor

ABB AF80-30-00-12 AF80 3-Pole Contactor, 48-130V AC/DC Coil

ABB
SKU:
AF80-30-00-12
|
UPC:
3471523132924
Availability:
Commonly stocked at factory
$315.80
Condition:
New
Current Stock:
Description

ABB AF80-30-00-12 3-Pole Contactor, 48-130V AC/DC Coil

The ABB AF80-30-00-12 is a 3-pole contactor from the ABB AF80 range with a 48-130 V AC/DC (50/60 Hz) coil. It is designed to switch power circuits up to 690 V AC / 220 V DC. Its electronic coil interface accepts a wide control voltage range, so one coil covers multiple supply voltages, and built-in surge suppression removes the need for add-on suppressors.

It is typically used for 3-phase motor control and power switching in industrial panels. Automation Distribution supplies the AF80-30-00-12 as an authorized ABB distributor.

Key Features

  • 3-Pole main contacts
  • Coil voltage: 48-130 V AC/DC (50/60 Hz)
  • Switches power circuits up to 690 V AC / 220 V DC
  • Built-in surge suppression, no add-on suppressor needed
  • Screw Terminals

Specifications

ManufacturerABB
Part NumberAF80-30-00-12
SeriesAF80
Product TypeContactor
Number of Poles3
Coil Voltage48-130 V AC/DC (50/60 Hz)
Maximum Operational Voltage690 V AC / 220 V DC
Terminal TypeScrew Terminals

Part Number Breakdown: AF80-30-00-12

CodeMeaning
AF80Contactor frame AF80
30Main poles: 3-Pole
00Auxiliary contacts: none
12Coil code: 48-130 V AC/DC (50/60 Hz)

Authorized ABB Distributor. Automation Distribution supplies genuine ABB motor control products. Contact our team for technical support, cross-references or volume pricing on the AF80-30-00-12.

Additional Information
Series:
AF80
Number of Poles:
3
Coil Voltage:
48-130 V AC/DC (50/60 Hz)
Maximum Operational Voltage:
690 V AC / 220 V DC
Terminal Type:
Screw Terminals
Spec Sheet:
View
