ABB EHDB220C-2L 240V 60Hz DC Drive Contactor - 960A, 3-Pole Configuration, UL & CSA Approved
ABB
$3,381.00

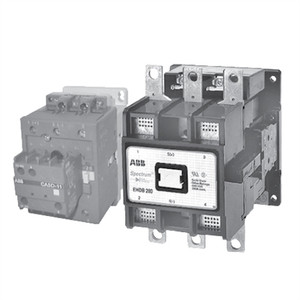

The ABB EHDB220C-2L is a robust and reliable DC drive contactor from the EHDB series, designed specifically for use with solid-state D.C. adjustable speed drive systems. This contactor features a 3-pole configuration with 2 normally open (NO) and 1 normally closed (NC) contacts, and operates with a 240VAC coil. It is capable of handling up to 960 amps, making it suitable for demanding applications. The EHDB220C-2L is UL and CSA approved, ensuring compliance with industry standards. It offers a wide coil voltage range of 24~600 VAC/VDC, with a DC make current of 450 amps and a make voltage of 300 volts. The contactor is equipped with auxiliary contacts (1NO and 1NC) and features a box lug termination for secure connections. With dimensions of 7.79 inches in height, 5.35 inches in width, and 6.65 inches in depth, and a net weight of 10 lb 11 oz, this contactor is compact yet powerful. Ideal for drive applications where the contactor is not required to make or break the load during normal operation, the EHDB220C-2L ensures efficient and reliable performance.
