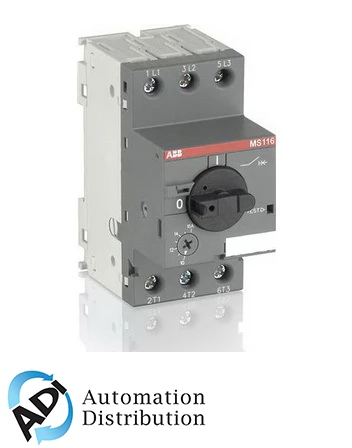

ABB MS116-4.0 Manual Motor Protector, 3-Phase, 2.5-4.0A Range, 50 kA Breaking Capacity at 400 VAC
ABB
$160.97
The ABB MS116-4.0 Manual Motor Protector is a robust and efficient solution for safeguarding motors in both three-phase and single-phase applications. With a compact 45 mm width, this device is designed to manually switch motors on and off while providing reliable protection against short-circuits, overloads, and phase failures. It features a rated operational current of 4.0 A and a service short-circuit breaking capacity of 50 kA at 400 VAC, ensuring high performance and safety. The MS116-4.0 includes a built-in disconnect function, temperature compensation, and a trip-free mechanism, all controlled via a rotary handle with clear switch position indication. This manual motor starter is compatible with a wide range of accessories, including auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, and locking devices, offering enhanced protection and flexibility for various industrial applications.
