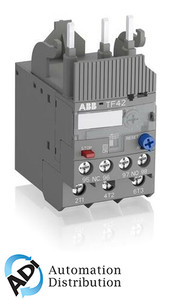

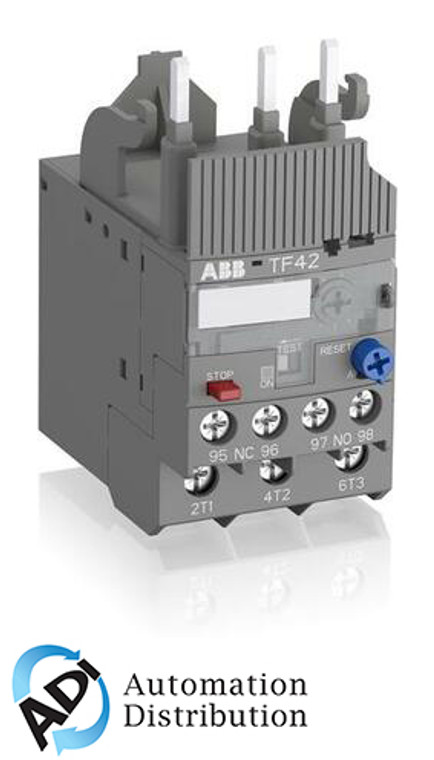

ABB TF42-3.1 TF42 Thermal Overload Relay, 2.3-3.1A, Class 10
ABB
$80.75
ABB TF42-3.1 TF42 Thermal Overload Relay, 2.3-3.1A, Class 10
The ABB TF42-3.1 is a thermal overload relay from the ABB TF42 range with an adjustable current setting range of 2.3 to 3.1 A and trip class 10.
It is used for motor protection against overload and phase failure. Automation Distribution supplies the TF42-3.1 as an authorized ABB distributor.
Key Features
- Adjustable current setting range: 2.3 to 3.1 A
- Trip class 10
- Protection against overload and phase failure
- Temperature compensation
- NC trip contact and NO signal contact
- Automatic or manual reset, selectable
- Trip indication and STOP function
Specifications
| Manufacturer | ABB |
| Part Number | TF42-3.1 |
| Series | TF42 |
| Product Type | Thermal Overload Relay |
| Current Setting Range | 2.3 to 3.1 A |
| Trip Class | 10 |
| Ambient Air Temperature | Operation -25 ... +60 °C / Operation Compensated -25 ... +60 °C / Storage -50 ... +80 °C |
| Voltage Rating | Auxiliary Circuit 600 V AC / DC / Main Circuit 690 V AC |
Authorized ABB Distributor. Automation Distribution supplies genuine ABB motor protection products. Contact our team for technical support, cross-references or volume pricing on the TF42-3.1.
- Series:
- TF42
- Current Setting Range:
- 2.3 to 3.1 A
- Trip Class:
- 10
- Ambient Air Temperature:
- Operation -25 ... +60 °C / Operation Compensated -25 ... +60 °C / Storage -50 ... +80 °C
- Voltage Rating:
- Auxiliary Circuit 600 V AC / DC / Main Circuit 690 V AC
