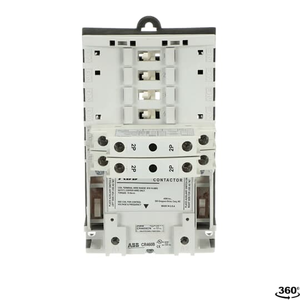

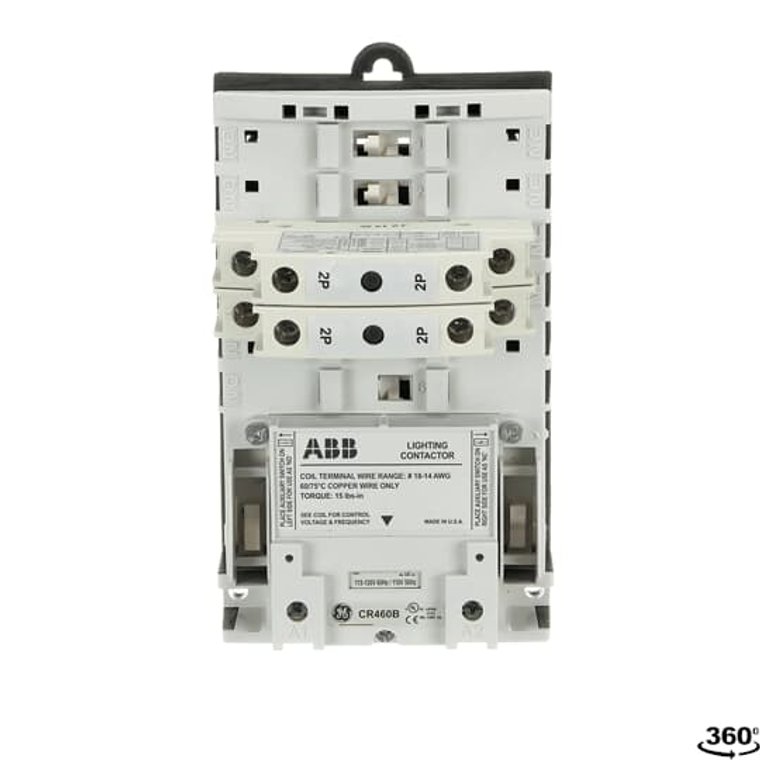

ABB CR463L04AJA Lighting Contactor-Open, 30A Capacity, 2-12 Poles, Electrically Held with Contact Position Indication and Easy Conversion NO/NC Power Poles

The ABB CR463L04AJA Lighting Contactor-Open is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, it supports a range of configurations with 30A capacity across 2-12 poles. The contactor features a contact position indication system, where a protruding button signifies a closed contact, ensuring easy monitoring. With 74 different circuit combinations possible, it offers flexibility for various applications. The contactor is equipped with robust pole terminals that accommodate up to two #8 AWG wires, and its manual operator ensures straightforward control. The fast, three-point mounting system simplifies installation, while enclosed contacts provide enhanced protection against contaminants, ensuring greater reliability. The contactor's power poles can be easily converted from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. Rated for 30A contacts, 15A motor tasks, and A600 pilot duty, it is suitable for a wide range of tasks. The auxiliary contacts, rated A600, are ideal for low-level circuits down to 12V, 5mA, and can be configured as NO or NC depending on their position on the base. Safety is prioritized with finger and back-of-hand safe power terminals, and the quick-view coil voltage and easy-change coil features enhance usability. Additionally, the low magnetic noise design ensures quiet operation, making it an excellent choice for both commercial and industrial lighting applications.
