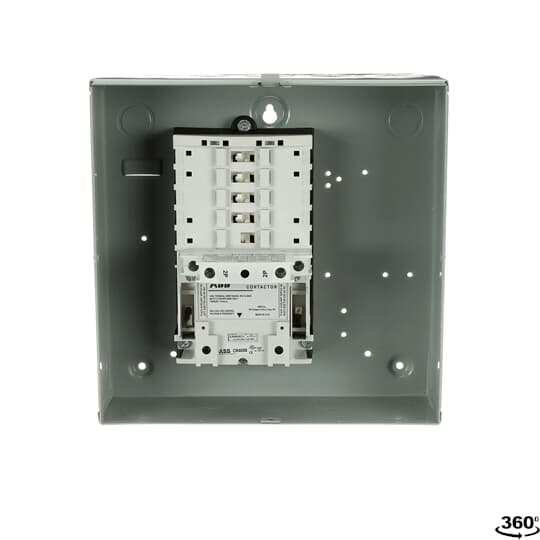

ABB CR463L20AJA10A0 Enclosed Lighting Contactor - Versatile 30A Solution with Easy Monitoring and Installation

The ABB CR463L20AJA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, this unit supports 30A across 2 to 12 poles, offering a wide range of circuit combinations with its standard assembled forms. The contact position indication feature allows for easy monitoring, as the button protrudes when the contact is closed. This contactor provides convenient side access for field power wiring and includes a contact configuration indicator for easy setup. Its robust pole terminals can accommodate up to two #8 AWG wires, ensuring secure connections. The manual operator and fast, sure three-point mounting system make installation straightforward. The enclosed contacts are designed to resist contaminants, enhancing reliability, while the combination slotted/#2 Phillips screws facilitate easy assembly. The power poles can be easily changed from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. Rated for a variety of tasks, the power poles support 30A rated contacts, 15A motor rated, and A600 pilot duty rated applications. The easy-to-read rating label and auxiliary contacts, rated A600, are suitable for low-level circuits down to 12V, 5mA. These plug-in auxiliary contacts are NO when installed on the left side of the base and NC on the right. Safety is prioritized with finger and back-of-hand safe power terminals. The quick-view coil voltage and easy-change coil features ensure efficient maintenance, while low magnetic noise results in quiet operation. Ideal for lighting applications, this contactor operates at 120V 60Hz and 110V 50Hz, making it a reliable choice for various environments.
