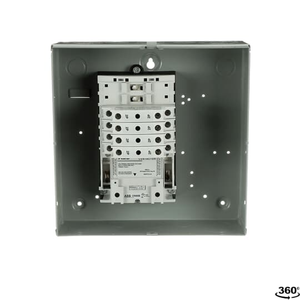

ABB CR463L30AJA10A0 Lighting Contactor-Enclosed - Versatile 30A Circuit Management with 2-12 Pole Configurations and Enhanced Safety Features

The ABB CR463L30AJA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, this unit supports 30A across 2-12 poles, offering a wide range of circuit combinations with its standard assembled forms. The contact position indication feature allows for easy monitoring, as the button protrudes when the contact is closed. This contactor is engineered for convenience and flexibility, featuring power poles available as single or double poles, creating up to 74 different circuit configurations. The side access field power wiring and contact configuration indicator enhance usability, while the robust pole terminals accommodate up to two #8 AWG wires. The manual operator and fast, sure three-point mounting ensure straightforward installation and operation. Enclosed contacts provide resistance to contaminants, ensuring greater reliability in various environments. The combination slotted/#2 Phillips screws facilitate easy installation, and the power poles can be effortlessly changed from normally open (NO) to normally closed (NC) by simply unlatching and rotating 180°. Rated for a range of tasks, the power poles support 30A rated contacts, 15A motor rated, and A600 pilot duty rated applications. The easy-to-read rating label and auxiliary contacts, rated A600, are suitable for low-level circuits down to 12V, 5mA. The plug-in auxiliary contacts are NO when installed on the left side of the base and NC on the right, providing additional flexibility. Safety is prioritized with finger and back-of-hand safe power terminals, while the quick-view coil voltage and easy-change coil ensure efficient maintenance. The low magnetic noise design results in quiet operation, making this contactor an ideal choice for various lighting control applications.
