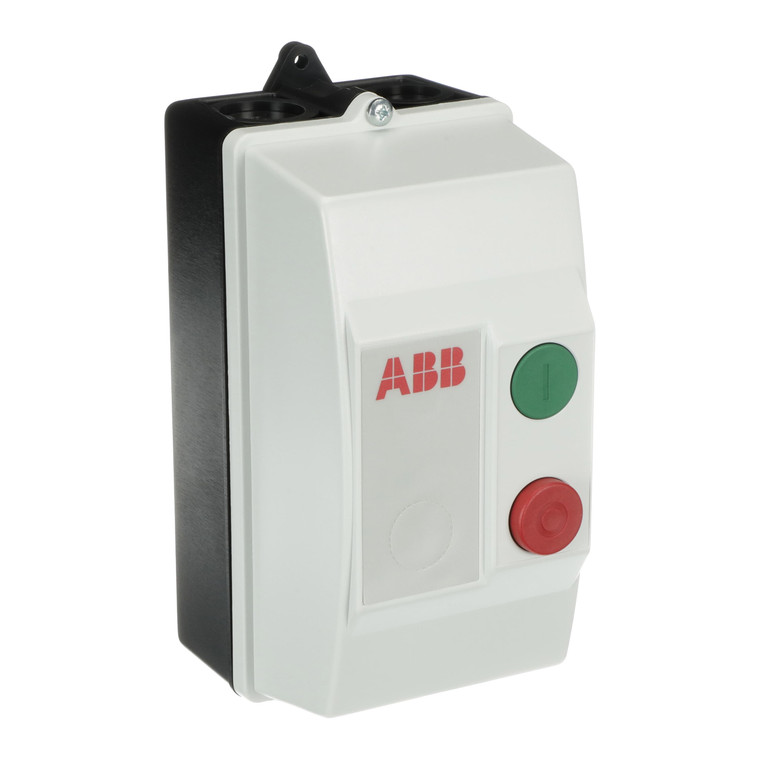

ABB DRAF12-13U Enclosed Direct-On-Line Starter for 3-Phase Motors, IP66 Rated, 100-250V Control Supply
ABB
$193.48
(No reviews yet)
Write a Review
Write a Review
ABB
ABB DRAF12-13U Enclosed Direct-On-Line Starter for 3-Phase Motors, IP66 Rated, 100-250V Control Supply

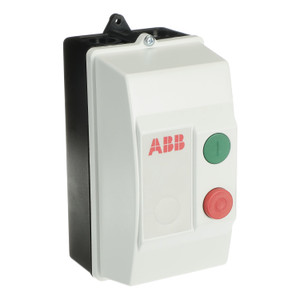

The ABB DRAF12-13U is a robust enclosed Direct-On-Line starter designed for efficient control of 3-phase asynchronous motors up to 690 V AC. This starter is delivered fully assembled and wired, ensuring a seamless installation process. It features an IP66 and type 4X plastic enclosure with double insulation, providing excellent protection against harsh environments. The enclosure is equipped with a green flush "I" ON button and a red protruding "O" OFF/RESET button for easy operation. It includes four cable inlets and outlets via knockouts, suitable for UL starter types, ensuring versatile connectivity options.
Inside, the DRAF12-13U houses an AF12-30-10-13 3-pole contactor with a holding contact, ensuring reliable motor control. The DRAF..U model comes with a separate supply for UL starters, supporting an AC control supply range of 100-250V at 50/60HZ. Additionally, it includes a CB5-10 start contact block, a PE terminal, and a neutral terminal for comprehensive connectivity. Please note that the TF42 thermal overload relay must be ordered separately and selected based on the motor's nominal current to ensure optimal performance and protection.
