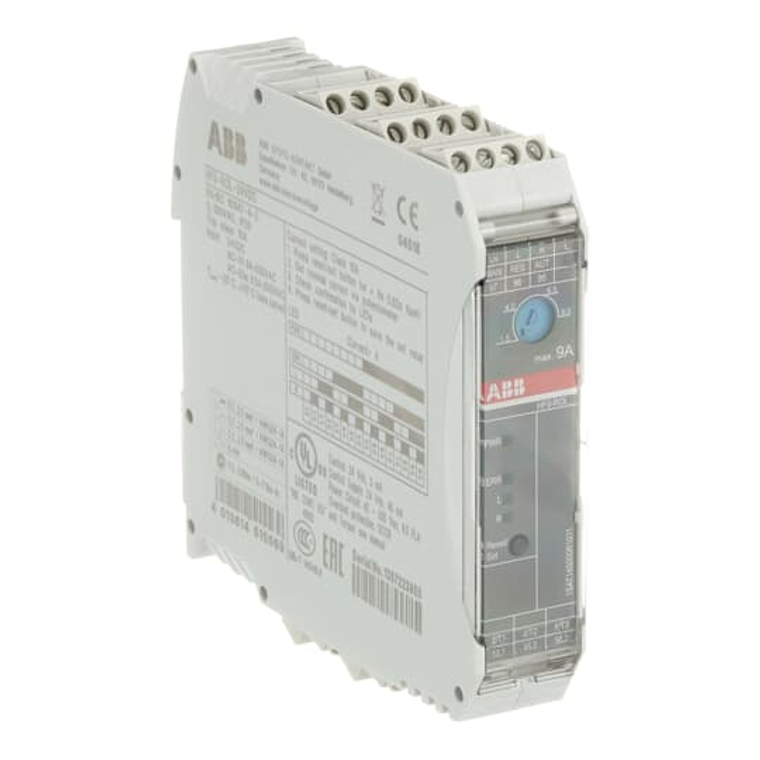

ABB HF9-ROL HF-ROL Range, HF9 Elec Comp Starter W Ol
ABB
$408.14
ABB HF9-ROL HF-ROL Range
The ABB HF9-ROL is a HF-ROL Range (HF9 Elec Comp Starter W Ol).
The HF-ROL-range is used for forward and reverse running motors, as well as for switching non resistive loads. With contactor and overload relay functionalities integrated into one device, the results are faster wiring times and fewer faults. The range covers 0.6 A, 2.4 A and up to 9 A - for motors up to 3 kW - 500 V AC. The integrated electronic overload protection has a wide setting range that enables just three models to cover all requirements. Setting range of HF9-ROL-24VDC is 1.5 A to 9 A. The control supply voltage is 24 V DC. For the control and main connection points ABB offers screw connections. ABB also offers a HF-ROLE safety range with emergency stop function. This offers Safety Integrity Level 3, in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in accordance with ISO 13849-1. The safety range is ATEX-certified. Automation Distribution supplies the HF9-ROL as an authorized ABB distributor.
Key Features
- HF9 Elec Comp Starter W Ol
Specifications
| Manufacturer | ABB |
| Part Number | HF9-ROL |
| Description | HF-ROL Range |
| Feature 1 | HF9 Elec Comp Starter W Ol |
Authorized ABB Distributor. Automation Distribution supplies genuine ABB electrical products. Contact our team for technical support, cross-references or volume pricing on the HF9-ROL.
- Feature 1:
- HF9 Elec Comp Starter W Ol
- Spec Sheet:
- View
