ABB OT80F3 3p 80a ul508 nf sw

(No reviews yet) Write a Review
SKU:
OT80F3
UPC:
6.42E+12
Minimum Purchase:
10 units
  • ABB OT80F3 3p 80a ul508 nf sw
  • ABB OT80F3 3p 80a ul508 nf sw
  • ABB OT80F3 Switch Disconnector
$169.34

Description

Overview

Abb

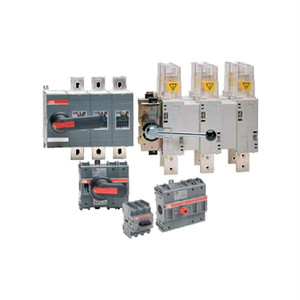

Open Disconnects, Switchline Series

Item# Ot80F3 - Disconnect Switch, 3-P, 80A/600V, Non-Fusible, Ul508 Listed, Open, Switch Only - Less Operating Mech

Switchline Series Information
  • 16~3150 Amps
  • 600Vac Maximum
  • Ul E63822; Csa Lr58247
  • 2, 3, 4, 6, Or 8 Poles
  • Din Rail, Door, Or Base Mount
Abb Switchline Includes 16 Different Amperage Sizes From 16A To 3150A. The Basic Construction Provides Flexibility, Safety, And High Performance In An Extremely Compact Size. Abb Switchline Is A Perfect Choice For All Switching Applications From Industrial Motor Control To Construction Safety Switches.

  • Broad Range Of Accessories Available
  • Mountable In Any Position
  • Finger Proof For Improved Safety
  • Wielded Contact Protection
  • Flange, Side, Or Thru-Door Installation

Specifications

Item Number: &Nbsp;
Ot80F3
Upc: &Nbsp;
804325415651
Brand:
Abb
Item Category:
Disconnect Switches
Subcategory:
Open
Series:
Switchline
Fusible:
No
Poles:
3
Current Rating:
80 Amps
Voltage Ac:
600 Volts Ac
Ul Class:
Ul508&Nbsp;&Nbsp;
Mounting:
Panel;Din
Operator Type:
Thru-Door
Max Hp 230/240V 3Ph:
20 Horsepower
Max Hp 460/480V 3Ph:
40 Horsepower
Max Hp 600V 3Ph:
40 Horsepower
Max Hp 120V 1P:
2 Horsepower
Max Hp 240V 1P:
10 Horsepower
H X W X D:
3.6 In X 2.07 In X 2.85 In
&Nbsp;&Nbsp;Net Weight:
9.44 Oz
&Nbsp;&Nbsp;Gross Weight:
9.4347 Oz
