ABB PSE30-600-70 PSE Softstarter, 30A, 208-600V AC, 100-250V AC Control, Built-In Bypass
ABB
$1,117.34

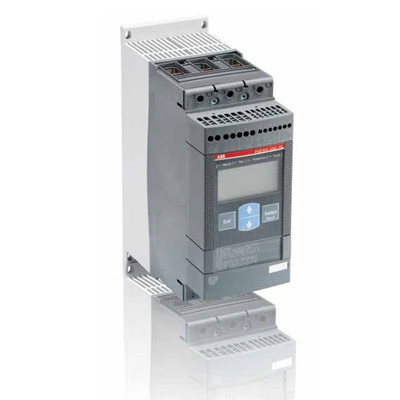

ABB PSE30-600-70 PSE Softstarter
The ABB PSE30-600-70 is an PSE softstarter rated 30 A at 208-600 V AC with a 100-250V AC control supply. PSE is ABB's general-purpose softstarter for small to medium three-phase motors (18 to 370 A), balancing starting capacity and cost.
Automation Distribution supplies the PSE30-600-70 as an authorized ABB distributor. The softstarter PSE30-600-70 has a rated maximum operational current of 30 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general purpose softstarter. It's a perfect balance between high starting capacity and cost efficiency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.
Key Features
- Rated Operational Current: 30 A
- Operating Voltage: 208-600 V AC
- Control Voltage: 100-250 V AC 50/60 Hz
- Control Method: Two-phase, voltage or torque ramp
- Bypass: Built-in
- Relay Outputs: RUN, TOR and Event (NO)
- Display: Illuminated, language-neutral symbols
- Fieldbus: Modbus RTU built in; external adapters optional
- Protection: Current limit, kickstart, EOL, underload and locked rotor
Specifications
| Manufacturer | ABB |
| Part Number | PSE30-600-70 |
| Product Type | PSE Softstarter |
| Rated Operational Current | 30 A |
| Operating Voltage | 208-600 V AC |
| Control Voltage | 100-250 V AC 50/60 Hz |
| Control Method | Two-phase, voltage or torque ramp |
| Bypass | Built-in |
| Relay Outputs | RUN, TOR and Event (NO) |
| Display | Illuminated, language-neutral symbols |
| Fieldbus | Modbus RTU built in; external adapters optional |
| Protection | Current limit, kickstart, EOL, underload and locked rotor |
Part Number Breakdown: PSE30-600-70
| Code | Meaning |
|---|---|
| PSE30 | PSE frame, 30 A |
| 600 | Maximum operating voltage 600 V AC |
| 70 | Control supply 100-250V AC |
Authorized ABB Distributor. Automation Distribution supplies genuine ABB motor control products. Contact our team for technical support, cross-references or volume pricing on the PSE30-600-70.
- Rated Operational Current:
- 30 A
- Operating Voltage:
- 208-600 V AC
- Control Voltage:
- 100-250 V AC 50/60 Hz
- Control Method:
- Two-phase, voltage or torque ramp
- Bypass:
- Built-in
- Relay Outputs:
- RUN, TOR and Event (NO)
- Display:
- Illuminated, language-neutral symbols
- Fieldbus:
- Modbus RTU built in, external adapters optional
- Protection:
- Current limit, kickstart, EOL, underload and locked rotor
- Spec Sheet:
- View
