ABB RMS112512LRGR ReliaMod Meter Stack, 5 Sockets, 125A, 1-Phase In/1-Phase Out, Ring Sockets, 10-22kA
ABB
$4,316.28

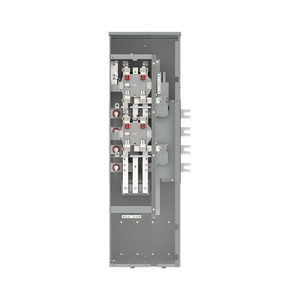

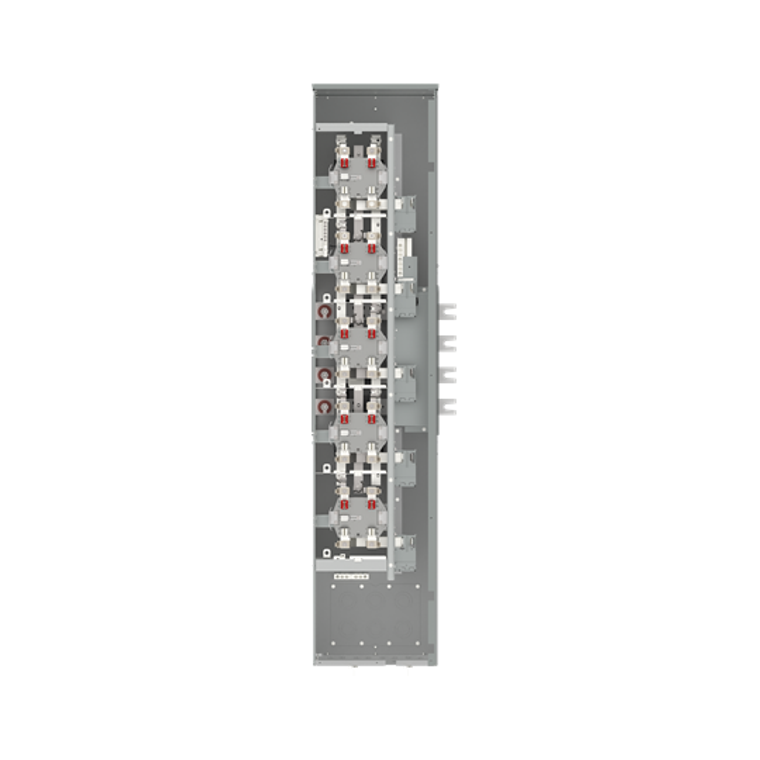

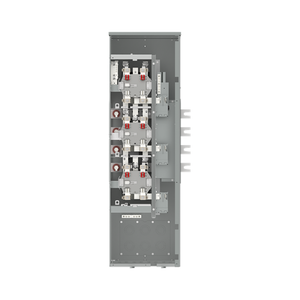

ABB RMS112512LRGR ReliaMod Meter Stack
The ABB RMS112512LRGR is a ReliaMod Meter Stack (5 Sockets, 125A, 1-Phase In/1-Phase Out, Ring Sockets, 10-22kA). ReliaMod meter stacks are modular meter centers: stack modules are bused together with a main module to build a multi-tenant metering assembly sized to the building.
Automation Distribution supplies the RMS112512LRGR as an authorized ABB distributor.
Key Features
- Meter Positions: 5
- Socket Rating: 125 A
- Input: 1-phase
- Output (to meters): 1-phase
- Socket Type: Ring
- Short-Circuit Rating: 10-22 kA
Specifications
| Manufacturer | ABB |
| Part Number | RMS112512LRGR |
| Series | ReliaMod |
| Product Type | ReliaMod Meter Stack |
| Meter Positions | 5 |
| Socket Rating | 125 A |
| Input | 1-phase |
| Output (to meters) | 1-phase |
| Socket Type | Ring |
| Short-Circuit Rating | 10-22 kA |
Authorized ABB Distributor. Automation Distribution supplies genuine ABB ReliaMod modular metering products. Contact our team for technical support, cross-references or volume pricing on the RMS112512LRGR.
- Series:
- ReliaMod
- Meter Positions:
- 5
- Socket Rating:
- 125 A
- Input:
- 1-phase
- Output (to meters):
- 1-phase
- Socket Type:
- Ring
- Short-Circuit Rating:
- 10-22 kA
- Spec Sheet:
- View
