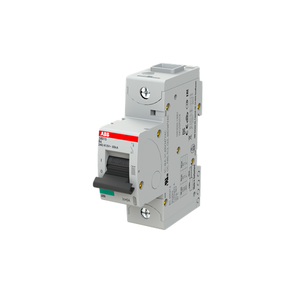

ABB S802S-B6 S800S High Performance Circuit Breaker, 2-Pole, 6A, B Curve, 50kA, UL 1077
ABB
$260.98
ABB S802S-B6 S800S High Performance Circuit Breaker, 2-Pole, 6 A, B Curve
The ABB S802S-B6 is a 2-pole high performance circuit breaker from the ABB S800S series, rated 6 A with a B tripping characteristic and a 50 kA breaking capacity at 240/415 V. It is recognized to UL 1077 as a supplementary protector, providing overcurrent protection inside equipment and control panels where branch circuit protection is already provided upstream.
The B curve trips instantaneously at 3 to 5 x In, which makes it a strong fit for resistive loads, lighting circuits and long cable runs. Automation Distribution supplies the S802S-B6 as an authorized ABB distributor.
Key Features
- 2-pole construction, rated current 6 A
- B tripping characteristic, magnetic trip at 3 to 5 x In
- 50 kA breaking capacity at 240/415 V
- Thermal trip for overload protection and electromagnetic trip for short-circuit protection
- 35 mm DIN rail mounting
- UL 1077 recognized supplementary protector
- Cage terminals
Specifications
| Manufacturer | ABB |
| Part Number | S802S-B6 |
| Series | S800S |
| Product Type | High Performance Circuit Breaker |
| Number of Poles | 2 |
| Rated Current | 6 A |
| Tripping Characteristic | B curve (3 to 5 x In) |
| Breaking Capacity | 50 kA at 240/415 V |
| Voltage Rating | (240 V AC) / (480Y / 277 V AC) / (600Y / 347 V AC) |
| Maximum Operating Voltage (IEC) | 400/690 V |
| Interrupt Rating (UL) | (240 V AC) 30 kA / (480Y / 277 V AC) 14 kA / (600Y / 347 V AC) 6 kA |
| Standards | IEC/EN 60947-2 / UL 1077 |
| Terminal Type | Cage terminal |
| Mounting | 35 mm DIN rail |
Part Number Breakdown: S802S-B6
| Code | Meaning |
|---|---|
| S802S | S800S series, 2-pole |
| B | Tripping characteristic: B curve |
| 6 | Rated current: 6 A |
Typical Applications
The S802S-B6 is typically selected for resistive loads, lighting circuits and long cable runs, as supplementary protection for PLC power supplies, control circuits and individual loads inside panels.
Authorized ABB Distributor. Automation Distribution supplies genuine ABB circuit protection products. Contact our team for technical support, cross-references or volume pricing on the S802S-B6.
- Series:
- S800S
- Number of Poles:
- 2
- Rated Current:
- 6 A
- Tripping Characteristic:
- B curve (3 to 5 x In)
- Breaking Capacity:
- 50 kA at 240/415 V
- Voltage Rating:
- (240 V AC) / (480Y / 277 V AC) / (600Y / 347 V AC)
- Maximum Operating Voltage (IEC):
- 400/690 V
- Interrupt Rating (UL):
- (240 V AC) 30 kA / (480Y / 277 V AC) 14 kA / (600Y / 347 V AC) 6 kA
- Standards:
- IEC/EN 60947-2 / UL 1077
- Terminal Type:
- Cage terminal
- Mounting:
- 35 mm DIN rail
