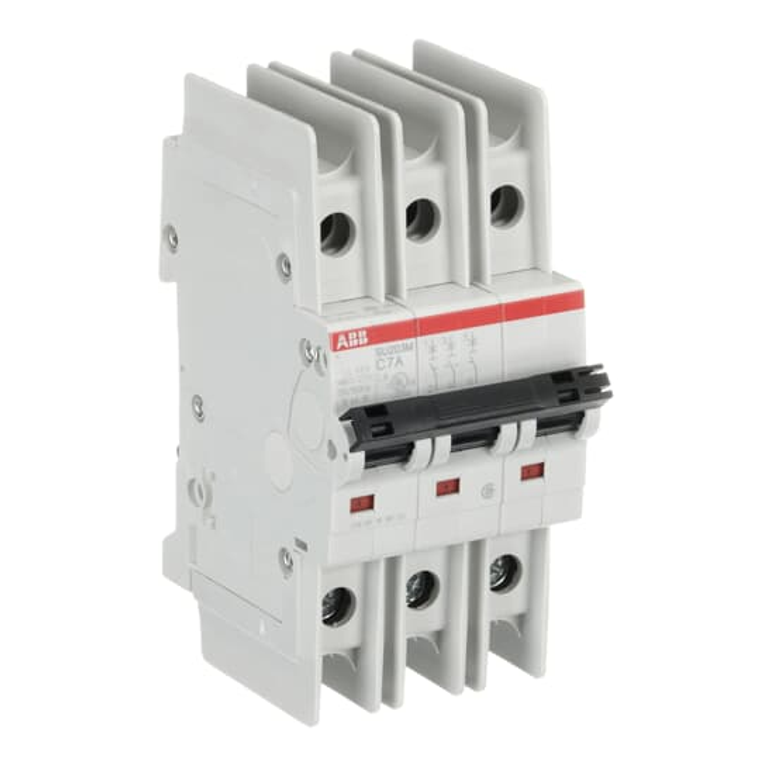

ABB SU203M-C7 SU200M Miniature Circuit Breaker, 3-Pole, 7A, C Curve, 10kA
ABB
$182.52
ABB SU203M-C7 SU200M Miniature Circuit Breaker, 3-Pole, 7 A, C Curve
The ABB SU203M-C7 is a 3-pole miniature circuit breaker from the ABB SU200M series, rated 7 A with a C tripping characteristic and a 10 kA breaking capacity.
The C curve trips instantaneously at 5 to 10 x In, which makes it a strong fit for general-purpose circuits with mixed resistive and inductive loads. Automation Distribution supplies the SU203M-C7 as an authorized ABB distributor.
Key Features
- 3-pole construction, rated current 7 A
- C tripping characteristic, magnetic trip at 5 to 10 x In
- 10 kA breaking capacity
- Thermal trip for overload protection and electromagnetic trip for short-circuit protection
- 35 mm DIN rail mounting
Specifications
| Manufacturer | ABB |
| Part Number | SU203M-C7 |
| Series | SU200M |
| Product Type | Miniature Circuit Breaker |
| Number of Poles | 3 |
| Rated Current | 7 A |
| Tripping Characteristic | C curve (5 to 10 x In) |
| Breaking Capacity | 10 kA |
| Voltage Rating | (480Y / 277 V AC) / (96 V DC) |
| Mounting | 35 mm DIN rail |
Part Number Breakdown: SU203M-C7
| Code | Meaning |
|---|---|
| SU203M | SU200M series, 3-pole |
| C | Tripping characteristic: C curve |
| 7 | Rated current: 7 A |
Typical Applications
The SU203M-C7 is typically selected for general-purpose circuits with mixed resistive and inductive loads in industrial, commercial and infrastructure distribution.
Authorized ABB Distributor. Automation Distribution supplies genuine ABB circuit protection products. Contact our team for technical support, cross-references or volume pricing on the SU203M-C7.
- Series:
- SU200M
- Number of Poles:
- 3
- Rated Current:
- 7 A
- Tripping Characteristic:
- C curve (5 to 10 x In)
- Breaking Capacity:
- 10 kA
- Voltage Rating:
- (480Y / 277 V AC) / (96 V DC)
- Mounting:
- 35 mm DIN rail
- Spec Sheet:
- View
