ABB SUP201M-K40 SUP200M Miniature Circuit Breaker, 1-Pole, 40A, K Curve, UL 489

ABB
SKU:
SUP201M-K40
|
UPC:
4016779056885
Availability:
65 Work Days
$46.65
Condition:
New
Current Stock:
Description

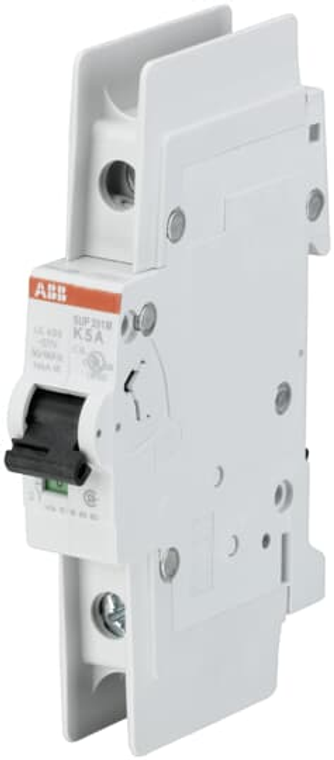

ABB SUP201M-K40 SUP200M Miniature Circuit Breaker, 1-Pole, 40 A, K Curve

The ABB SUP201M-K40 is a 1-pole miniature circuit breaker from the ABB SUP200M series, rated 40 A with a K tripping characteristic. It is UL 489 listed, so it can be used for branch circuit protection in control panels, machinery and building distribution.

The K curve trips instantaneously at 8 to 14 x In, which makes it a strong fit for motors, transformers and other inductive loads with high inrush current. Automation Distribution supplies the SUP201M-K40 as an authorized ABB distributor.

Key Features

  • 1-pole construction, rated current 40 A
  • K tripping characteristic, magnetic trip at 8 to 14 x In
  • Thermal trip for overload protection and electromagnetic trip for short-circuit protection
  • 35 mm DIN rail mounting
  • UL 489 listed for branch circuit protection

Specifications

ManufacturerABB
Part NumberSUP201M-K40
SeriesSUP200M
Product TypeMiniature Circuit Breaker
Number of Poles1
Rated Current40 A
Tripping CharacteristicK curve (8 to 14 x In)
UL StandardUL 489 (branch circuit protection)
Mounting35 mm DIN rail

Part Number Breakdown: SUP201M-K40

CodeMeaning
SUP201MSUP200M series, 1-pole
KTripping characteristic: K curve
40Rated current: 40 A

Typical Applications

The SUP201M-K40 is typically selected for motors, transformers and other inductive loads with high inrush current, with UL 489 branch circuit protection for industrial control panels and OEM machinery.

Authorized ABB Distributor. Automation Distribution supplies genuine ABB circuit protection products. Contact our team for technical support, cross-references or volume pricing on the SUP201M-K40.

Additional Information
Series:
SUP200M
Number of Poles:
1
Rated Current:
40 A
Tripping Characteristic:
K curve (8 to 14 x In)
UL Standard:
UL 489 (branch circuit protection)
Mounting:
35 mm DIN rail
Spec Sheet:
View
