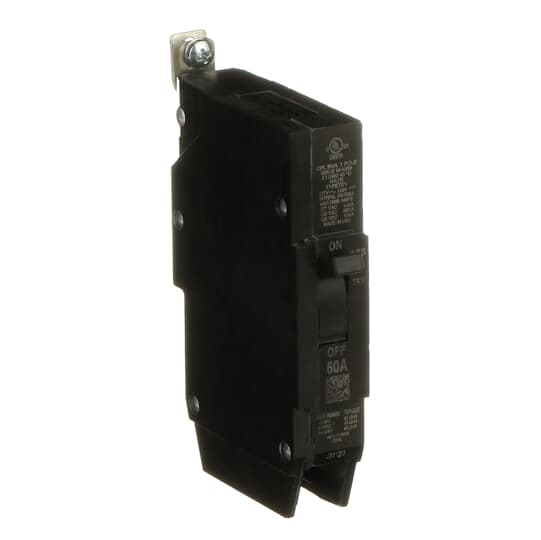

ABB TEY160 Single Pole Circuit Breaker - 60A, Bolt-On Mounting, Quick-Make/Break Mechanism, for 480Y/277 Vac Systems
ABB
$204.12
The ABB TEY160 Circuit Breaker Single Pole is a compact and efficient solution for your electrical system needs. Designed for use on grounded 480Y/277 Vac systems, this one-inch wide per pole breaker features a convenient bolt-on mounting base, making it versatile for various applications as a lug-lug breaker. It boasts Quick-make / Quick-break mechanisms, common trip bars, and an easy-to-spot trip indication, ensuring both safety and reliability. Available in 1, 2, and 3 pole versions, the TEY circuit breaker can also be customized with auxiliary contact and shunt trip accessories. This single pole, 60A breaker is engineered to deliver dependable performance in demanding environments.
- Sub Brand:
- TEY
- Amperage Rating:
- 60A
- Trip Range:
- Non-Interchangeable
- Application:
- Thermal Magnetic
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Number Of Poles:
- 1
- Load Rating:
- HACR
- Trip Type:
- LI
- Interrupt Rating:
- 14kA@120/240 Vac / 14kA@240 Vac / 14kA@277 Vac / 65kA@120 Vac
- Standard:
- E11592
- Connection:
- #14-2/0
- Spec Sheet:
- View
