ABB TEY330 Circuit Breaker Three Pole - 30A, Quick-Make/Break Mechanism, Bolt-On Mounting, Customizable Accessories
ABB
$569.00

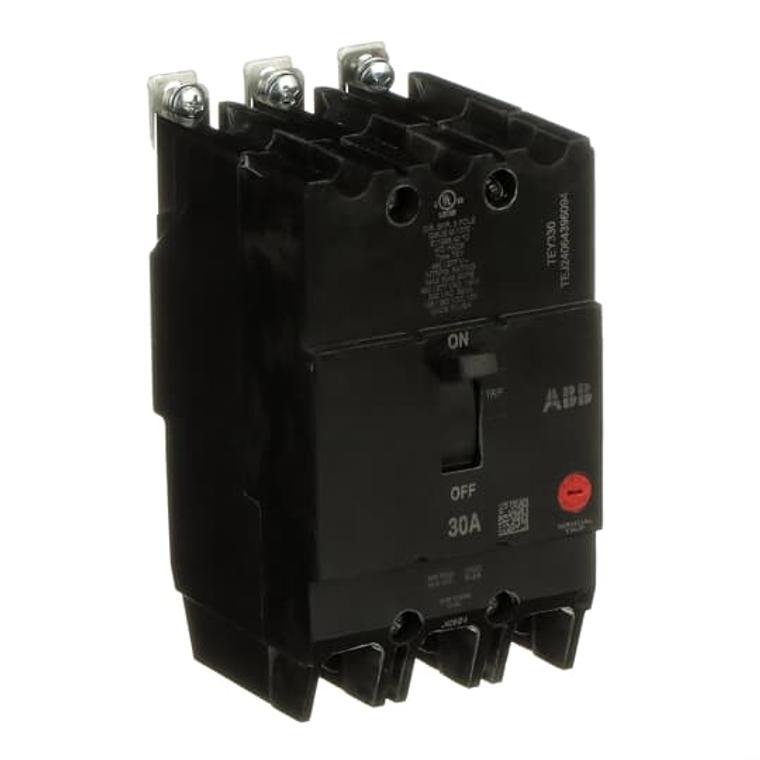

The ABB TEY330 Circuit Breaker Three Pole is a compact and reliable solution for your electrical system needs. Designed for use on grounded 480Y/277 Vac systems, this circuit breaker features a one-inch wide per pole design and a convenient "bolt-on" mounting base accessory, making it versatile for various applications as a lug-lug breaker. It is equipped with Quick-make / Quick-break mechanisms, common trip bars, and an easy-to-spot trip indication, ensuring both safety and reliability. Available in 1, 2, and 3 pole versions, the TEY circuit breakers can also be customized with auxiliary contact and shunt trip accessories to meet specific requirements. With a 30A capacity, the TEY330 is an ideal choice for those seeking efficiency and peace of mind in their electrical installations.
- Application:
- Thermal Magnetic
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Sub Brand:
- TEY
- Trip Range:
- Non-Interchangeable
- Number Of Poles:
- 3
- Interrupt Rating:
- 14kA@277 Vac / 65kA@120 Vac / 65kA@120/240 Vac / 65kA@240 Vac
- Standard:
- E11592
- Amperage Rating:
- 30A
- Load Rating:
- HACR / HID
- Connection:
- 14-8 kcmil / 12-8 kcmil
- Trip Type:
- LI
- Spec Sheet:
- View
