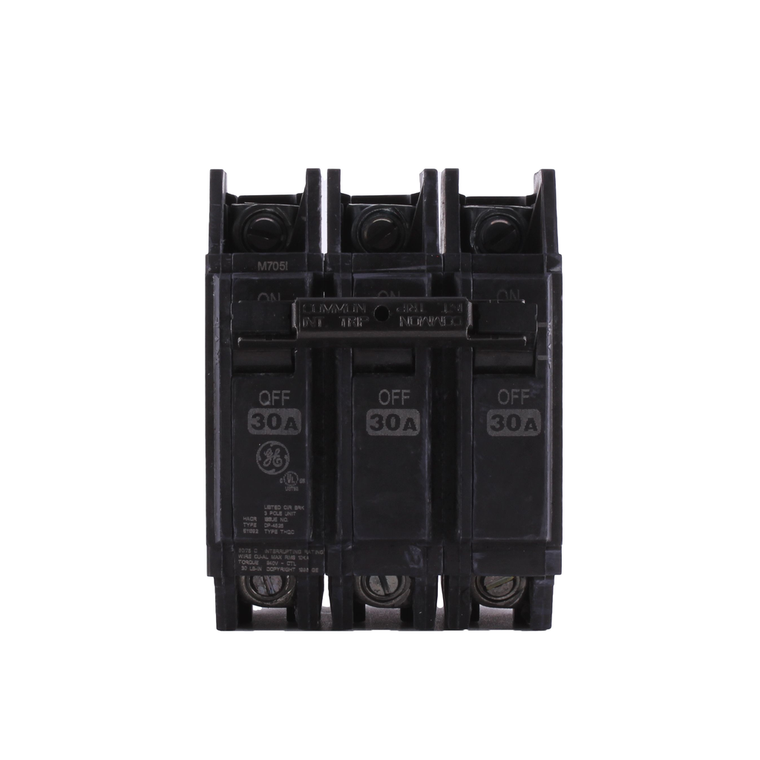

ABB THQC32030WL Circuit Breaker - 3-Pole, 30A, 240V, 10Ka Interrupting Capacity - Reliable Q Line Series for Residential and Commercial Use
ABB
$544.54
The ABB THQC32030WL Circuit Breaker is a robust and reliable solution for both residential and commercial electrical systems. This 3-pole, 30A, 240V circuit breaker is part of the Q Line series, known for its compact, one-inch wide per pole design. It features a thermal-magnetic mechanism that ensures efficient and safe operation. The QC version is equipped with lug-lug connections and is compatible with 35mm DIN rail mounting, making installation straightforward and versatile. Safety is a priority with the Quick-make / Quick-break mechanisms, common trip bars, and easy-to-spot trip indication, providing peace of mind and reliability. The Q Line breakers are adaptable, available in 1, 2, and 3 pole versions, and can be customized with auxiliary contact and shunt trip accessories. With a 10Ka interrupting capacity, this circuit breaker is designed to handle demanding electrical loads, ensuring your system's safety and performance.
- Number Of Poles:
- 3
- Trip Range:
- Non-Interchangeable
- Frame:
- Q-Line
- Trip Type:
- LI
- Sub Brand:
- Q Line
- Brand Name:
- Q-Line (Lug-Lug)
- Interrupt Rating:
- 10kA@120 Vac / 10kA@120/240 Vac / 10kA@240 Vac
- Application:
- High Intensity Discharge Lighting
- Standard:
- E11592
- Amperage Rating:
- 30A
- Load Rating:
- HACR
- Spec Sheet:
- View
