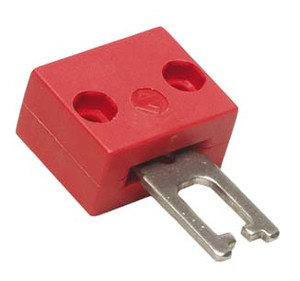

Leuze AC-AN-ASH Industrial Sensor System
Leuze
$8.00
The AC-AN-ASH is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model AC-AN-ASH). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Dimension (W x H x L):
- 53 mm x 14 mm x 29 mm
- Net weight:
- 12 g
- Type of fastening:
- Through-hole mounting
- Design, actuator:
- Angled
- Area of application, actuator:
- Normal duty
- Mounting bore holes:
- In key direction
- Material:
- Stainless steel
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27279216
- ECLASS 8.0:
- 27279216
- ECLASS 9.0:
- 27272606
- ECLASS 10.0:
- 27272606
- ECLASS 11.0:
- 27272606
- ECLASS 12.0:
- 27272606
- ECLASS 13.0:
- 27272606
- ECLASS 14.0:
- 27272606
- ECLASS 15.0:
- 27272606
- ETIM 5.0:
- EC001487
- ETIM 6.0:
- EC001487
- ETIM 7.0:
- EC001487
- ETIM 8.0:
- EC001487
- ETIM 9.0:
- EC001487
- ETIM 10.0:
- EC001487
- Datasheet:
- View
