Leuze AC-H-S400-S Additional hinge
Leuze
$46.00

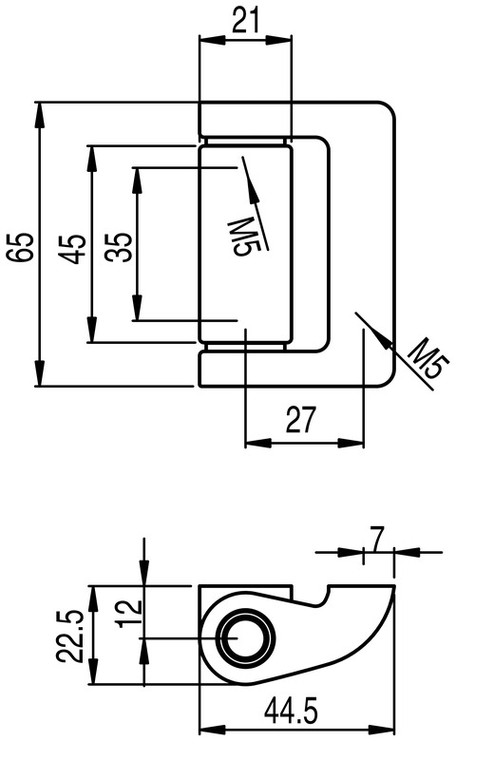

The Leuze AC-H-S400-S is an additional hinge designed for use with S400 series safety hinge switches, providing mechanical support for turning, bearing-mounted guards in industrial safety applications. Constructed from robust ZAMAK metal with a silver finish, it features M5 or M6 mounting threads and dimensions of 44.5 mm x 22.5 mm x 65 mm (or variant 49 mm x 22.5 mm x 100.6 mm per catalog), enabling precise alignment of hinge axes when multiple hinges are required. It supports door heights from 300 mm to 2500 mm with calculated maximum forces (e.g., Fmax = 200,000/D in N, where D is distance from center of gravity to hinge axis in mm), and must be torqued at 23 Nm (M5) or 1012 Nm (M6) during installation alongside the primary safety hinge switch.
- Suitable for:
- S400 safety hinge switch
- Design:
- Cubic
- Dimension (W x H x L):
- 44.5 mm x 22.5 mm x 65 mm
- Housing material:
- Metal
- Metal housing:
- ZAMAK
- Net weight:
- 180 g
- Housing color:
- Silver
- Type of fastening:
- Mounting thread
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27272690
- ECLASS 8.0:
- 27272690
- ECLASS 9.0:
- 27272692
- ECLASS 10.0:
- 27272692
- ECLASS 11.0:
- 27272692
- ECLASS 12.0:
- 27272692
- ECLASS 13.0:
- 27272692
- ECLASS 14.0:
- 27272692
- ECLASS 15.0:
- 27272692
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
