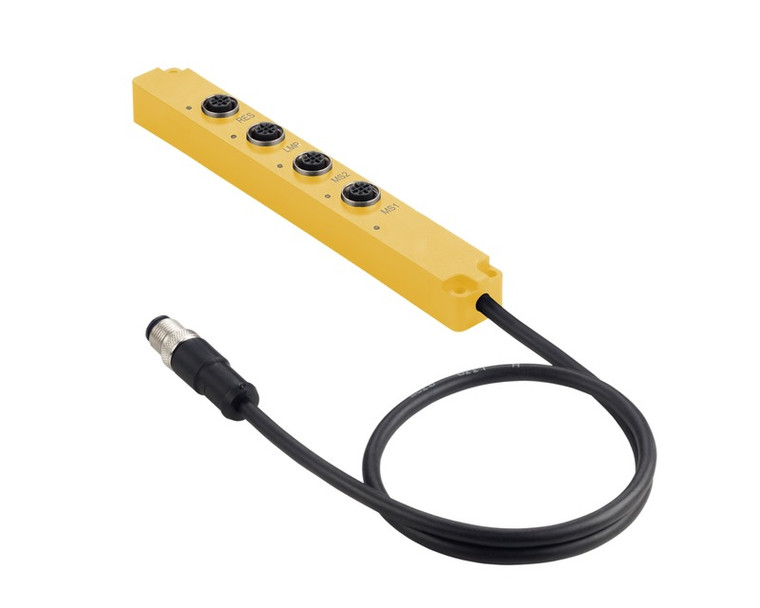

Leuze AC-SCM5U-BT Sensor connection module
Leuze
$225.00
The Leuze AC-SCM5U-BT is a sensor connection module designed for MLD 330 and MLD 530 multiple light beam safety devices, facilitating connections for sensors, scanners, switches, and external muting indicators. It operates on a 24 V DC supply (±20%) and features five M12 female connectors (5-pin, metal, A-encoded) plus a 500 mm PUR-sheathed cable with M12 connector for device connection. This module simplifies wiring in safety applications such as access guarding and hazardous area monitoring by providing a centralized, robust interface.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ac-scm5u-bt/520151
- Product Data PDF: https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/luze_ac-scm5u_dat.pdf
- Installation Instructions: https://www.leuze.com/en-us/products/safety-light-beaming-devices/ml d-series/installation-guide
- CAD Data: https://www.leuze.com/en-us/ac-scm5u-bt/520151cad
- Suitable for:
- MLD 330, MLD 530 multiple light beam safety devices
- Insulation resistance, min.:
- 10,000,000,000 ?
- Current load, max.:
- 1 A
- Supply voltage UB:
- 24 V, DC, -20 ... 20 %
- Number of connections:
- 5 Piece(s)
- Function:
- Connection to device,Local interface
- Type of connection:
- Cable with connector
- Cable length:
- 500 mm
- Sheathing material:
- PUR
- Type:
- Male
- Function:
- Local input, muting sensor 1
- Designation on device:
- MS1
- Function:
- Local input, muting sensor 2
- Designation on device:
- MS2
- Function:
- Connection - external muting indicator
- Designation on device:
- LMP
- Function:
- Connection - start/muting restart button
- Designation on device:
- RES
- Design:
- Cubic
- Dimension (W x H x L):
- 30 mm x 23.9 mm x 144 mm
- Housing material:
- Plastic
- Plastic housing:
- PA 6
- Net weight:
- 190 g
- Housing color:
- Black
- Type of fastening:
- Groove mounting,Mounting plate
- Type of display:
- LED
- Number of LEDs:
- 4 Piece(s)
- Ambient temperature, operation:
- -30 ... 80 °C
- Customs tariff number:
- 85369010
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279219
- ECLASS 9.0:
- 27440108
- ECLASS 10.0:
- 27440108
- ECLASS 11.0:
- 27440108
- ECLASS 12.0:
- 27440108
- ECLASS 13.0:
- 27440108
- ECLASS 14.0:
- 27440108
- ECLASS 15.0:
- 27440108
- ETIM 5.0:
- EC002585
- ETIM 6.0:
- EC002585
- ETIM 7.0:
- EC002585
- ETIM 8.0:
- EC002585
- ETIM 9.0:
- EC002585
- ETIM 10.0:
- EC002585
