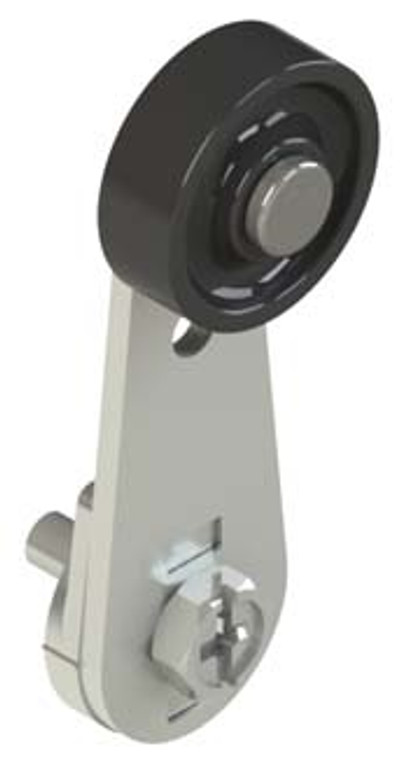

The Leuze AC-SL-R (part no. 63000880) is a straight actuator designed for heavy-duty applications, featuring dimensions of 14.5 mm x 20 mm x 49 mm and a net weight of 23 g. It supports through-hole mounting with bore holes positioned 90° to the key direction, enabling easy installation and quick vertical and axial alignment via roller linkage. Suitable for integration with Leuze sensors in demanding industrial environments requiring precise actuation.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ac-sl-r/63000880
- Product Details and Features: https://www.leuze.com/en-us/products/actuators/ac-sl-r-63000880
- CAD Downloads: https://www.leuze.com/en-us/downloads/cad/ac-sl-r-63000880
- Installation Guide: https://www.leuze.com/en-us/manuals/actuators/ac-sl-r-installation
- Functions:
- Easy installation, quick vertical and axial alignment in just a few steps,Linkage via roller
- Dimension (W x H x L):
- 14.5 mm x 20 mm x 49 mm
- Net weight:
- 23 g
- Type of fastening:
- Through-hole mounting
- Design, actuator:
- Straight
- Area of application, actuator:
- Heavy duty
- Mounting bore holes:
- 90° to key direction
- Material:
- Plastic,Steel, galvanized
- Customs tariff number:
- 85389099
- ECLASS 5.1.4:
- 27279216
- ECLASS 8.0:
- 27279216
- ECLASS 9.0:
- 27272606
- ECLASS 10.0:
- 27272606
- ECLASS 11.0:
- 27272606
- ECLASS 12.0:
- 27272606
- ECLASS 13.0:
- 27272606
- ECLASS 14.0:
- 27272606
- ECLASS 15.0:
- 27272606
- ETIM 5.0:
- EC001487
- ETIM 6.0:
- EC001487
- ETIM 7.0:
- EC001487
- ETIM 8.0:
- EC001487
- ETIM 9.0:
- EC001487
- ETIM 10.0:
- EC001487
- Datasheet:
- View
