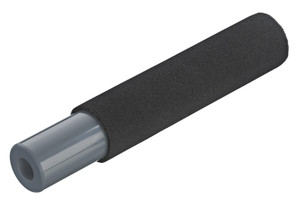

The Leuze AC-TR20/40 (part no. 349939) is a precision test piece designed for calibrating and verifying the performance of optical sensors, particularly those with detection ranges involving 20 mm and 40 mm diameters. It features a two-diameter cylindrical design20 mm on one end and 40 mm on the otherconstructed from durable black Terluran HH106 plastic housing for reliable light attenuation and mechanical stability in testing environments. This accessory ensures accurate sensor alignment and response validation in industrial automation setups, such as quality control and positioning systems.
Documentation
- Technical Datasheet: https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/DSACTR2040eng349939.pdf
- Product Page: https://www.leuze.com/en-int/ac-tr20-40/349939
- Technical Features: https://www.leuze.com/en-int/ac-tr20-40/349939technical-data
- Downloads Section: https://www.leuze.com/en-int/ac-tr20-40/349939downloads
- Diameter 1:
- 20 mm
- Diameter 2:
- 40 mm
- Housing material:
- Plastic
- Plastic housing:
- Terluran HH106 black
- Net weight:
- 46 g
- Housing color:
- Black
- Customs tariff number:
- 39269097
- ECLASS 5.1.4:
- 27270990
- ECLASS 8.0:
- 27270990
- ECLASS 9.0:
- 27279090
- ECLASS 10.0:
- 27270992
- ECLASS 11.0:
- 27270992
- ECLASS 12.0:
- 27270992
- ECLASS 13.0:
- 27270992
- ECLASS 14.0:
- 27270992
- ECLASS 15.0:
- 27270992
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
