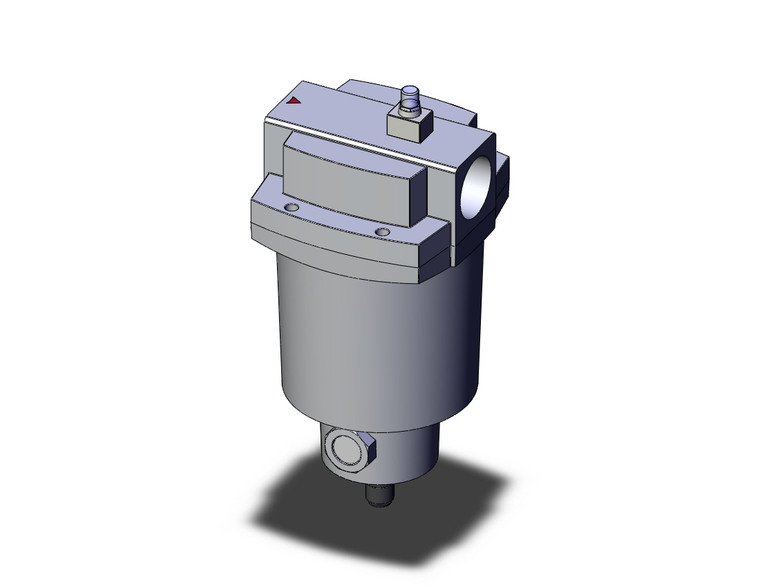

SMC AMH650-N14D-T Micro Mist Separator W/Pre-Filter
- SKU:
- AMH650-N14D-T
- Condition:
- New
- Series::
- AMH - Micro Mist Separator w/ Prefilter
- Fluid::
- Compressed Air
- Standard Cubic Feet per Minute::
- 212
- Thread::
- NPT
- Port Size::
- 1-1/2"
- Bracket::
- No
- Auto Drain::
- Normally Open
- Element Service Indicator::
- Yes
- Ambient & Fluid Temperature::
- 41??F to 140??F
- Normal Filtration Density::
- 0.01??m (Filtration Efficiency: 99.9%)
- Element Replacement Period::
- 2 years or when pressure drop reaches 0.1 MPa (14.5 psi)
Description
AMH150C-550C/AMH650-850, Coalescing Micro Mist Separator with Prefilter
Series AMH is a high precision, micro-mist separator combined with a prefilter. The AMH can separate and eliminate aerosol state oil mist in compressed air and remove carbon or dust of more than 0.01micron. The AMH series is suitable for drying/cleaning pneumatic measurement instruments (air micrometer) and precision parts.
-
- Micro mist separator w/prefilter- Modular connection is possible with AMH150C to 550C
- Port size: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/2, 2
- Option include: Fluororubber material, medium air pressure (1.6MPa), drain guide, IN-OUT reversal direction, differential pressure switches, element service indicator, and degreasing wash
