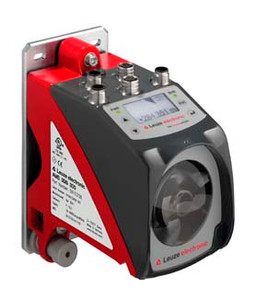

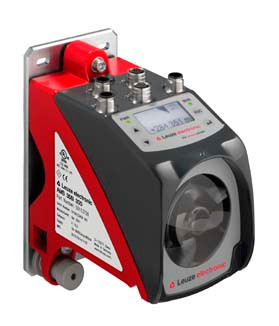

Leuze AMS 301i 200 H Optical distance sensor
Leuze
$7,434.00
The Leuze AMS 301i 200 H is a laser-based optical distance sensor engineered for precision long-range measurement in industrial automation and positioning applications. With a measurement range of 200200,000 mm, ±3 mm accuracy, and 0.00110 mm resolution, this sensor delivers reliable distance data at traverse rates up to 10 m/s. Powered by 1830 V DC and equipped with a Class 2 laser light source, the unit comes pre-mounted with a mounting plate for straightforward integration into manufacturing, material handling, and quality assurance systems. Its SSI interface and configurable output enable seamless connectivity with industrial control systems and programmable logic controllers.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/products/measuring-sensors/optical-distance-sensors/ams-301i-200-h/50113675
- Installation and Setup Guide: https://www.leuze.com/en-us/downloads/ams-301i-200-h-installation-guide-pdf
- 3D CAD Model and Dimensional Drawings: https://www.leuze.com/en-us/downloads/ams-301i-200-h-cad-data
- Product Family Overview AMS 300i Series: https://www.leuze.com/en-us/products/measuring-sensors/optical-distance-sensors/ams-300i-series
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 150 mm [200,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 200,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 3 mm
- Reproducibility (3 sigma):
- 2.1 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- RS 485
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- B-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
