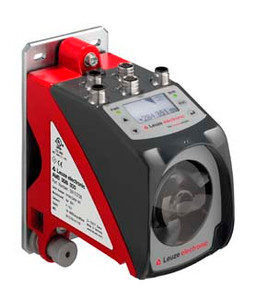

Leuze AMS 338i 200 H Optical distance sensor
Leuze
$8,289.00
The Leuze AMS 338i 200 H is a laser-based optical distance sensor engineered for precision measurement in industrial automation and manufacturing environments. With a measurement range of 200200,000 mm, an accuracy of 23 mm, and resolution as fine as 0.001 mm, this sensor delivers reliable absolute distance data across extended operating distances. The integrated EtherCAT interface (100 Mbit/s) enables seamless integration into distributed control architectures, while the 1830 V DC supply and M12 connector system simplify installation in factory floor applications.
The rugged metal housing with glass lens cover operates reliably across ?5 to 50 °C ambient conditions, and the integrated switch functionality supports both measurement and triggering tasks. Maximum traverse rate of 10 m/s accommodates dynamic measurement scenarios, making this sensor suitable for position verification, dimensional inspection, and motion control in automated production lines and material handling systems. Pre-mounted with a mounting plate and available in a heated variant for thermal stability, the AMS 338i 200 H meets the demands of high-precision industrial applications requiring deterministic communication.
Documentation
- Technical Datasheet https://www.leuze.com/en-us/ams-338i-200/50113703
- Installation and Integration Guide https://www.leuze.com/en-us/downloads/ams-338i-200-installation-guide
- EtherCAT Interface Specification https://www.leuze.com/en-us/downloads/ams-338i-ethercat-configuration
- Product Family Overview (AMS 300 Series) https://www.leuze.com/en-us/products/ams-300-optical-distance-sensors
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 150 mm [200,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 200,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 3 mm
- Reproducibility (3 sigma):
- 2.1 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- EtherCAT
- Switch functionality:
- Integrated
- Transmission speed:
- 100 Mbit/s
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- D-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
