Leuze AMS 348i 120 Optical distance sensor
Leuze
$6,932.00

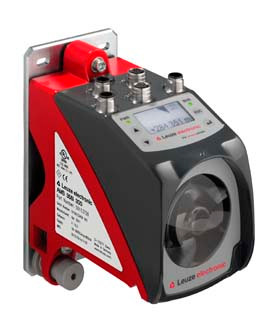

The Leuze AMS 348i 120 is an absolute optical laser distance sensor designed for precise position control, measuring distances from 0.2 to 120 m against a reflector using time-of-flight principle with a red laser (Class 2, IEC/EN 60825-1:2014). It offers ±2 mm accuracy, 0.5 mm consistency, adjustable resolution, ?10 m/s traverse rate, and 1.7 ms measurement value output with 8 ms integration time, housed in a cast zinc/aluminum enclosure (IP65, 84 x 166.5 x 159 mm, 2.45 kg) with glass optics. Electrical specs include 18-30 VDC supply (?250 mA at 24 V), PROFINET RT interface (100 Mbit/s, conformance class B, integrated switch), multiple M12 connectors (BUS IN/OUT 4-pin D-coded, PWR 5-pin A-coded, service 5-pin A-coded), 2 programmable inputs/outputs, and operational controls via membrane keyboard; suitable for applications like collision protection, high-bay storage axes, gantry cranes, and automated positioning.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/ams-348i-120/50113710
- Operating Instructions: https://www.leuze.com/en-int/support/downloads/operating-instructions/ams-348i
- Product Page: https://www.leuze.com/en-int/ams-348i-120-h/50113714
- CAD Data: https://www.leuze.com/en-int/cad-data/ams-348i-120
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 100 mm [120,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 120,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 2 mm
- Reproducibility (3 sigma):
- 1.5 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- PROFINET
- Conformance class:
- B
- Protocol:
- PROFINET RT
- Switch functionality:
- Integrated
- Transmission speed:
- 100 Mbit/s
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- D-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
