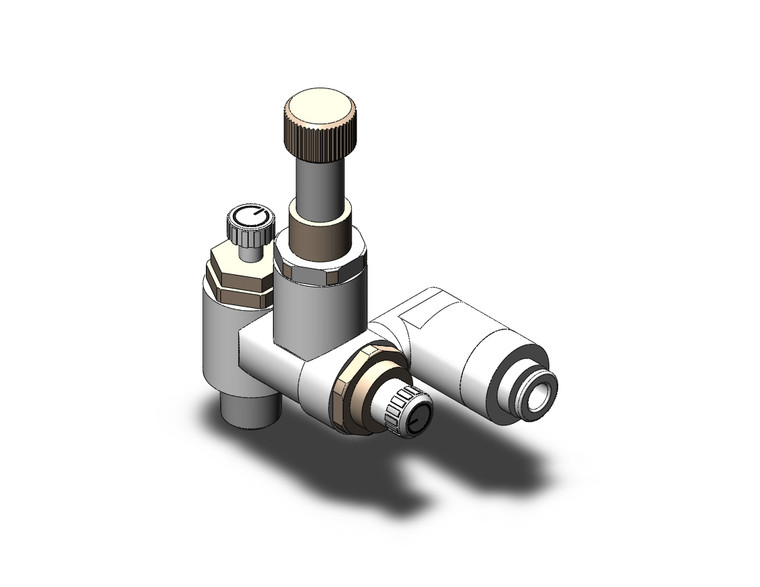

SMC ASQ430F-02-06S Flow Control, Air Saving Valve
- SKU:
- ASQ430F-02-06S
- Condition:
- New
- Model:
- ASQ (Flow Valve)
- Size:
- 4 (1/4 Standard)
- Port Size:
- 02 (1/4)
- Applicable Tubing O.D.:
- 06 (6mm)
- Option:
- Variable set pressure type (0.1 to 0.3 MPa)
- Lock Nut:
- Standard (Hexagon)
Description
ASR*30/ASQ*30, Air Saving Valve (PFC/QFC Valve)
ASR/ASQ (PFC/QFC valve) can reduce air consumption by 25%. The PFC control valve has a pressure adjustment and speed control function. The QFC control valve offers a high speed exhaust and cylinder speed control function. Series ASR/ASQ with one-touch fitting (Pressure/Flow valve), can reduce air consumption by 40%. The pressure valve has a regulator with check valve, plus speed controller. The flow valve offers a quick supply and exhaust valve, plus a speed controller.
- Can reduce air consumption by 25%- Fluid: air
- Max. operating pressure: 7kgf/cm 2 (700kPa) 145PSI
- ASR (PFC valve): control valve that has pressureadjustment and speed control functions
- ASQ (QFC valve): control valve that has highspeed exhaust and cylinder speed control functions
- Metric and NPT threads
