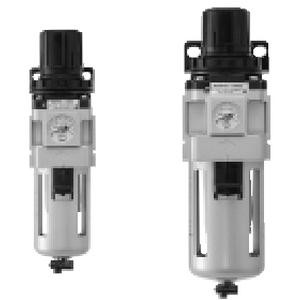

SMC AWD20-N01CE-CZ Filter/Regulator W/Mist Separator
- SKU:
- AWD20-N01CE-CZ
- Condition:
- New
- Availability:
- In stock: 28
- Size:
- 20 (1/8)
- Thread:
- N (NPT)
- Port Size:
- 01 (1/8)
- Accessory 1:
- C (Float Style Auto Drain N.C.)
- Accessory 2:
- E (Rectangular Recessed Pressure Gauge)
- Option 1:
- None
- Option 2:
- C (Bowl Guard Size 2000 Only)
- Option 3:
- Z (Name Plate, Caution on Bowl)
Description
AWD, Micro Mist Separator with Regulator, Modular
For applications requiring micro-mist separation up to .01 m with adjustable pressure regulation, the AWD offers these features built into one unit. This combination of products saves space and mounting hardware. Available with ports from 1/8 to 1/2 with NPT, Rc and G (PF) threads as standard. The many options available such as auto-drain, gauge, variety of bowl choices and regulation set pressures make this series easy to configure to your application.
- Modular style regulator and micro mist separator- Minimize space and piping
- Three body sizes
- Port size: 1/8, 1/4, 3/8 and 1/2
- Filtration: 0.01 m
- Note: AWD will be discontinued in the near future. New designs are encouraged to use AWD-D.
-
