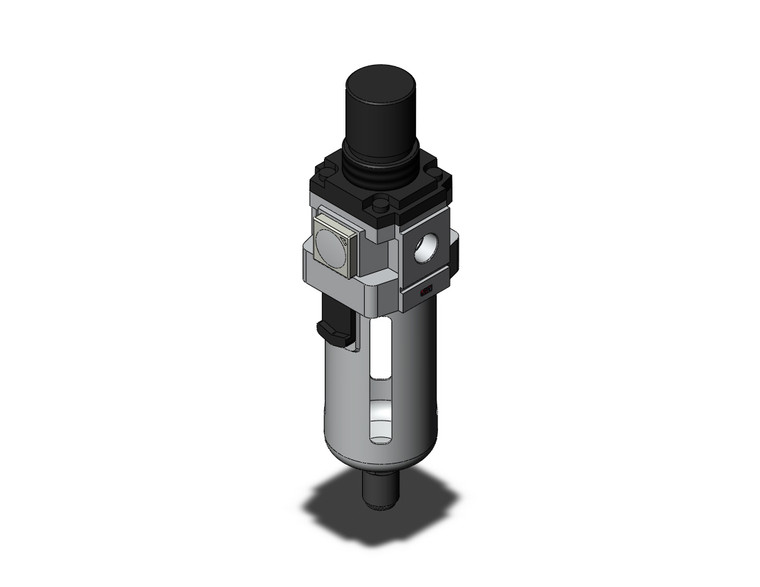

SMC AWD40-N03DE-Z Filter/Regulator W/Mist Separator
- SKU:
- AWD40-N03DE-Z
- Condition:
- New
- Availability:
- In stock: 55
- Size:
- 1/2
- Thread:
- NPT
- Port Size:
- 3/8
- Accessory 1:
- Float Style Auto Drain N.O.
- Accessory 2:
- Rectangular Recessed Pressure Gauge
- Option 3:
- Name Plate, Caution on Bowl
Description
AWD, Micro Mist Separator with Regulator, Modular
For applications requiring micro-mist separation up to .01 m with adjustable pressure regulation, the AWD offers these features built into one unit. This combination of products saves space and mounting hardware. Available with ports from 1/8 to 1/2 with NPT, Rc and G (PF) threads as standard. The many options available such as auto-drain, gauge, variety of bowl choices and regulation set pressures make this series easy to configure to your application.
- Modular style regulator and micro mist separator- Minimize space and piping
- Three body sizes
- Port size: 1/8, 1/4, 3/8 and 1/2
- Filtration: 0.01 m
- Note: AWD will be discontinued in the near future. New designs are encouraged to use AWD-D.
-
