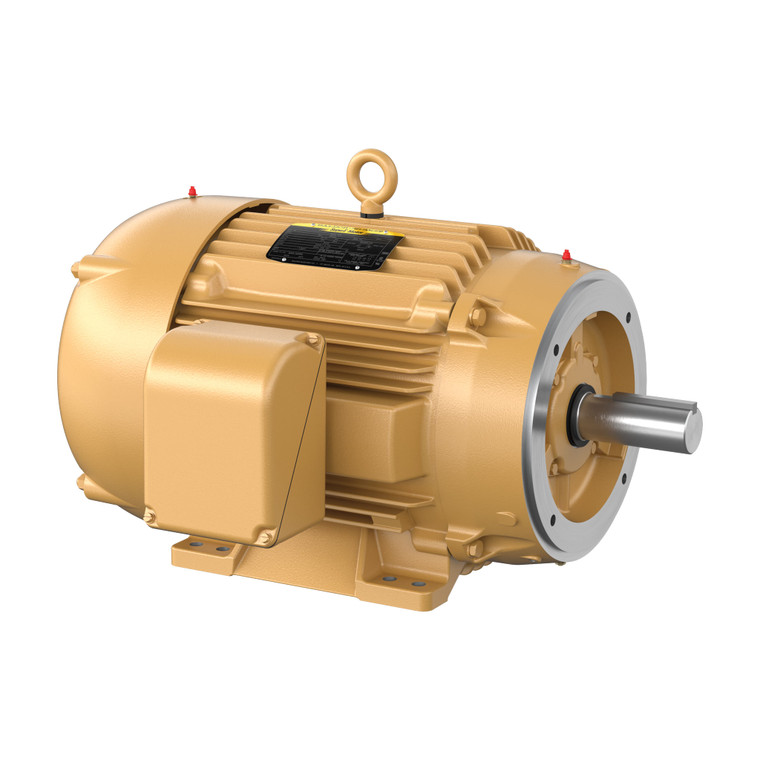

ABB Baldor-Reliance CEM4117T 30 HP 1180 RPM 326TC TEFC Three-Phase General Purpose Motor

ABB Baldor-Reliance CEM4117T 30 HP 1180 RPM 326TC TEFC Three-Phase General Purpose Motor

ABB Baldor-Reliance
SKU:
CEM4117T
|
UPC:
781568952252
$9,745.27
Condition:
New
Current Stock:
Description
CEM4117T
Baldor-Reliance 30 HP Three-Phase General Purpose Motor
30 HP, 1180RPM, 3PH, 230/460V, 326TC, TEFC
30 HP1180 RPM326TC FrameTEFC230/460 V93 % eff

Specifications

Catalog NumberCEM4117T
Output30 HP
Speed (RPM)1180
Synchronous Speed (RPM)1200
Number of Poles6
Voltage (V)230/460
Full Load Amps (A)78/39
Phase3
Frequency (Hz)60
Frame326TC
Frame MaterialCast Iron
EnclosureTotally Enclosed Fan Cooled (TEFC)
IP RatingIP44
NEMA Nominal Efficiency (%)93 %
Power Factor78
Service Factor1.15
Insulation ClassF
NEMA DesignA
Duty CycleContinuous
Ambient Temperature40 °C
Overall Length30.34 in
MountingF1
Shaft GroundingNo Shaft Grounding
InverterInverter Duty
Agency ApprovalsCSA EEV, NEMA_PREMIUM, UR
Product LineGeneral Purpose, enclosed

Application & Design Notes

The CEM4117T is a Baldor-Reliance three-phase general purpose motor rated 30 HP at 1180 RPM in a 326TC cast iron frame with a TEFC enclosure. It delivers 93 % nominal efficiency at 1.15 service factor. Totally enclosed fan cooled construction suits wet, humid, and dusty locations. Class F insulation and a 1.15 service factor make it a versatile workhorse for pumps, fans, blowers, conveyors, compressors, and general industrial machines, direct on line or on a variable frequency drive.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, or application help on the CEM4117T, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
30 HP
Speed:
1180 RPM
Poles:
6
Voltage:
230/460 V
Full Load Amps:
78/39 A
Phase:
3
Frequency:
60 Hz
Frame:
326TC
Enclosure:
TEFC
Efficiency:
93%
Service Factor:
1.15
Insulation Class:
F
