ABB Baldor-Reliance EJMM4310T 60 HP 3560 RPM 364JM TEFC Close-Coupled Pump Motor
$13,713.34
ABB Baldor-Reliance

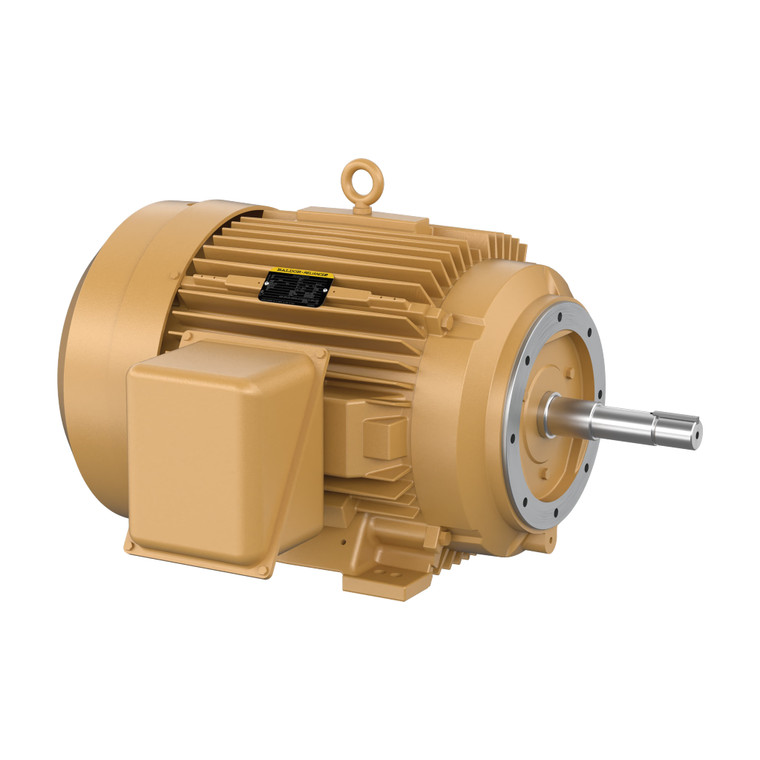

ABB Baldor-Reliance EJPM4310T 60 HP 3560 RPM 364JP TEFC Close-Coupled Pump Motor
ABB Baldor-Reliance
$13,713.34
EJPM4310T
Baldor-Reliance 60 HP Close-Coupled Pump Motor
60HP, 3560RPM, 3PH, 230/460V, 364JP, TEFC
60 HP3560 RPM364JP FrameTEFC230/460 V93.6 % eff
Specifications
| Catalog Number | EJPM4310T |
| Output (HP) | 60 |
| Speed (RPM) | 3560 |
| Synchronous Speed (RPM) | 3600 |
| Number of Poles | 2 |
| Voltage (V) | 230/460 |
| Full Load Amps (A) | 134/67.3 |
| Phase | 3 |
| Frequency (Hz) | 60 |
| Frame | 364JP |
| Shaft Type | JP close-coupled pump shaft |
| Frame Material | Cast Iron |
| Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| NEMA Nominal Efficiency (%) | 93.6 % |
| Power Factor | 89 |
| Service Factor | 1.15 |
| Insulation Class | B |
| NEMA Design | B |
| Duty Cycle | Continuous |
| Ambient Temperature | 40 °C |
| Overall Length | 36.3 in |
| Mounting | F1 |
| Shaft Grounding | No Shaft Grounding |
| Inverter | Inverter Duty |
| Agency Approvals | CCSAUSEEV |
| Product Line | Close-coupled pump |
Application & Design Notes
The EJPM4310T is a Baldor-Reliance close-coupled pump motor rated 60 HP at 3560 RPM in a 364JP cast iron frame. The JP close-coupled pump shaft and C-face flange mount a pump head directly to the motor, removing the separate coupling, base, and alignment of a pedestal-mounted set. It delivers 93.6 % nominal efficiency. Totally enclosed fan cooled construction suits wet, humid, and dusty pump installations. Class B insulation, 1.15 service factor, and pump-duty protection. Built for water, wastewater, HVAC, irrigation, booster, and general close-coupled pumping, direct on line or on a variable frequency drive.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance close-coupled pump motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, frame and shaft selection, or application help on the EJPM4310T, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 60 HP
- Speed:
- 3560 RPM
- Poles:
- 2
- Voltage:
- 230/460 V
- Full Load Amps:
- 134/67.3 A
- Phase:
- 3
- Frequency:
- 60 Hz
- Frame:
- 364JP
- Enclosure:
- TEFC
- Efficiency:
- 93.6%
- Service Factor:
- 1.15
- Insulation Class:
- B
