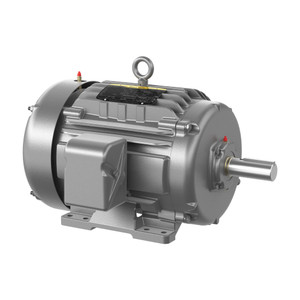

ABB Baldor-Reliance GNEM2506T 7.5 HP 1185 RPM 254T OPSB Three-Phase General Purpose Motor

ABB Baldor-Reliance GNEM2506T 7.5 HP 1185 RPM 254T OPSB Three-Phase General Purpose Motor

ABB Baldor-Reliance
SKU:
GNEM2506T
|
UPC:
781568586259
$2,764.95
Condition:
New
Current Stock:
Description
GNEM2506T
Baldor-Reliance 7.5 HP (5 kW (50 Hz)) Three-Phase General Purpose Motor
7.5 HP (5 kW (50 Hz)), 1185RPM, 3PH, 190/380//208-230/460V, 254T, OPSB
7.5 HP (5 kW (50 Hz))1185 RPM254T FrameOPSB190/380//208-230/460 V90.2 % eff

Specifications

Catalog NumberGNEM2506T
Output7.5 HP (5 kW (50 Hz))
Speed (RPM)1185
Synchronous Speed (RPM)1200
Number of Poles6
Voltage (V)190/380//208-230/460
Full Load Amps (A)25.6-25.4/12.7//26.2/13.1
Phase3
Frequency (Hz)60 / 50
Frame254T
Frame MaterialSteel
EnclosureOpen, Protected (OPSB)
NEMA Nominal Efficiency (%)90.2 %
Power Factor61
Service Factor1.15
Insulation ClassF
NEMA DesignA
Duty CycleContinuous
Ambient Temperature40 °C
Overall Length23.19 in
MountingF1
Shaft GroundingNo Shaft Grounding
Agency ApprovalsC UR US, CE, IE3, NEMA_PREMIUM, UKCA, WEEE
Product LineGNEM, General Purpose, Open

Application & Design Notes

The GNEM2506T is a Baldor-Reliance three-phase general purpose motor rated 7.5 HP (5 kW (50 Hz)) at 1185 RPM in a 254T steel frame with a OPSB enclosure. This is a dual-rated global motor, usable at 60 Hz and 50 Hz. It delivers 90.2 % nominal efficiency at 1.15 service factor. Open construction suits clean, protected indoor duty. Class F insulation and a 1.15 service factor make it a versatile workhorse for pumps, fans, blowers, conveyors, compressors, and general industrial machines, direct on line or on a variable frequency drive.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, or application help on the GNEM2506T, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
7.5 HP
Speed:
1185 RPM
Poles:
6
Voltage:
190/380//208-230/460 V
Full Load Amps:
25.6-25.4/12.7//26.2/13.1 A
Phase:
3
Frequency:
60 / 50 Hz
Frame:
254T
Enclosure:
OPSB
Efficiency:
90.2%
Service Factor:
1.15
Insulation Class:
F
