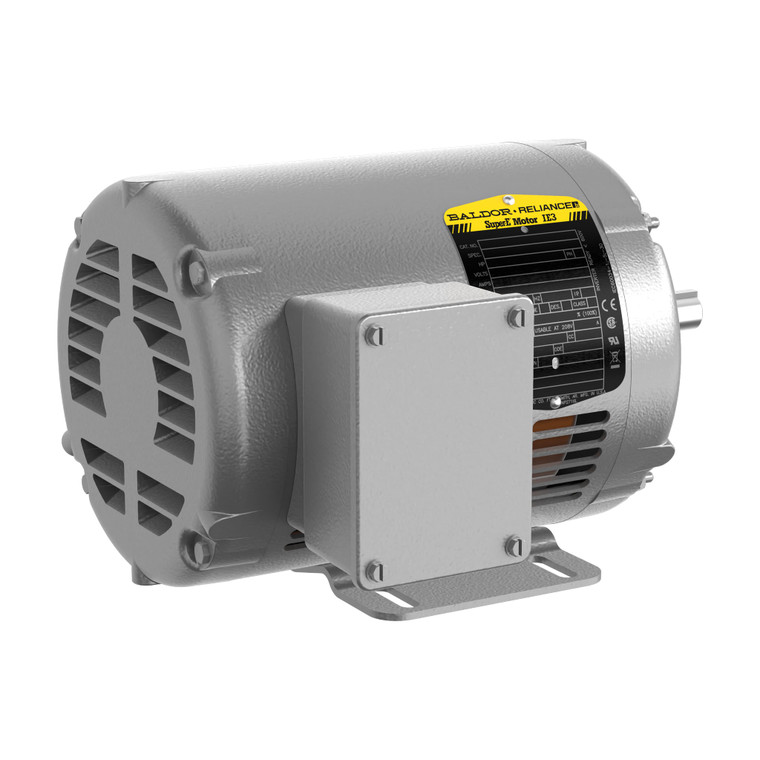

ABB Baldor-Reliance GNEM31157 2 HP 1765 RPM 56 OPSB Three-Phase General Purpose Motor
ABB Baldor-Reliance
$1,052.36
GNEM31157
Baldor-Reliance 2 HP (1.5 kW (50 Hz)) Three-Phase General Purpose Motor
2 HP (1.5 kW (50 Hz)), 1765RPM, 3PH, 190/380//208-230/460V, 56, OPSB
2 HP (1.5 kW (50 Hz))1765 RPM56 FrameOPSB190/380//208-230/460 V86.5 % eff
Specifications
| Catalog Number | GNEM31157 |
| Output | 2 HP (1.5 kW (50 Hz)) |
| Speed (RPM) | 1765 |
| Synchronous Speed (RPM) | 1800 |
| Number of Poles | 4 |
| Voltage (V) | 190/380//208-230/460 |
| Full Load Amps (A) | 5.7-5.6/2.8//6.4/3.2 |
| Phase | 3 |
| Frequency (Hz) | 60 / 50 |
| Frame | 56 |
| Frame Material | Steel |
| Enclosure | Open, Protected (OPSB) |
| NEMA Nominal Efficiency (%) | 86.5 % |
| Power Factor | 77 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| Duty Cycle | Continuous |
| Ambient Temperature | 40 °C |
| Overall Length | 12.94 in |
| Mounting | F1 |
| Shaft Grounding | No Shaft Grounding |
| Agency Approvals | CE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE |
| Product Line | GNEM, General Purpose, Open |
Application & Design Notes
The GNEM31157 is a Baldor-Reliance three-phase general purpose motor rated 2 HP (1.5 kW (50 Hz)) at 1765 RPM in a 56 steel frame with a OPSB enclosure. This is a dual-rated global motor, usable at 60 Hz and 50 Hz. It delivers 86.5 % nominal efficiency at 1.15 service factor. Open construction suits clean, protected indoor duty. Class F insulation and a 1.15 service factor make it a versatile workhorse for pumps, fans, blowers, conveyors, compressors, and general industrial machines, direct on line or on a variable frequency drive.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, or application help on the GNEM31157, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 2 HP
- Speed:
- 1765 RPM
- Poles:
- 4
- Voltage:
- 190/380//208-230/460 V
- Full Load Amps:
- 5.7-5.6/2.8//6.4/3.2 A
- Phase:
- 3
- Frequency:
- 60 / 50 Hz
- Frame:
- 56
- Enclosure:
- OPSB
- Efficiency:
- 86.5%
- Service Factor:
- 1.15
- Insulation Class:
- F
