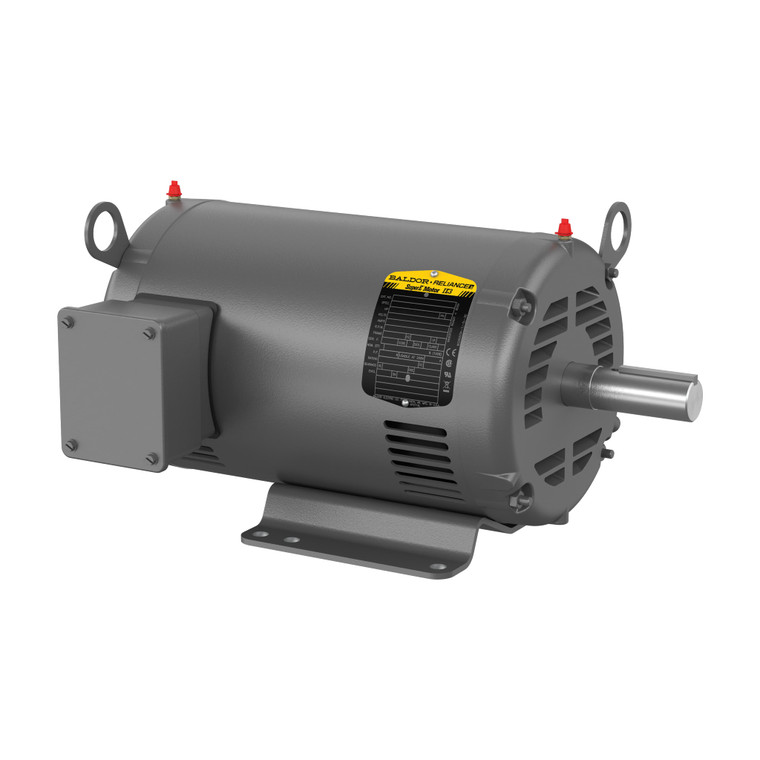

ABB Baldor-Reliance GNEM3207T 1.5 HP 1170 RPM 182T OPSB Three-Phase General Purpose Motor

ABB Baldor-Reliance GNEM3207T 1.5 HP 1170 RPM 182T OPSB Three-Phase General Purpose Motor

ABB Baldor-Reliance
SKU:
GNEM3207T
|
UPC:
781568584545
$1,352.40
Condition:
New
Current Stock:
Description
GNEM3207T
Baldor-Reliance 1.5 HP (1.1 kW (50 Hz)) Three-Phase General Purpose Motor
1.5 HP (1.1 kW (50 Hz)), 1170RPM, 3PH, 190/380//208-230/460V, 182T, OPSB
1.5 HP (1.1 kW (50 Hz))1170 RPM182T FrameOPSB190/380//208-230/460 V86.5 % eff

Specifications

Catalog NumberGNEM3207T
Output1.5 HP (1.1 kW (50 Hz))
Speed (RPM)1170
Synchronous Speed (RPM)1200
Number of Poles6
Voltage (V)190/380//208-230/460
Full Load Amps (A)5.1-5/2.5//5.8/2.9
Phase3
Frequency (Hz)60 / 50
Frame182T
Frame MaterialSteel
EnclosureOpen, Protected (OPSB)
NEMA Nominal Efficiency (%)86.5 %
Power Factor64
Service Factor1.15
Insulation ClassF
NEMA DesignB
Duty CycleContinuous
Ambient Temperature40 °C
Overall Length15 in
MountingF1
Shaft GroundingNo Shaft Grounding
Agency ApprovalsCE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE
Product LineGNEM, General Purpose, Open

Application & Design Notes

The GNEM3207T is a Baldor-Reliance three-phase general purpose motor rated 1.5 HP (1.1 kW (50 Hz)) at 1170 RPM in a 182T steel frame with a OPSB enclosure. This is a dual-rated global motor, usable at 60 Hz and 50 Hz. It delivers 86.5 % nominal efficiency at 1.15 service factor. Open construction suits clean, protected indoor duty. Class F insulation and a 1.15 service factor make it a versatile workhorse for pumps, fans, blowers, conveyors, compressors, and general industrial machines, direct on line or on a variable frequency drive.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, or application help on the GNEM3207T, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
1.5 HP
Speed:
1170 RPM
Poles:
6
Voltage:
190/380//208-230/460 V
Full Load Amps:
5.1-5/2.5//5.8/2.9 A
Phase:
3
Frequency:
60 / 50 Hz
Frame:
182T
Enclosure:
OPSB
Efficiency:
86.5%
Service Factor:
1.15
Insulation Class:
F
