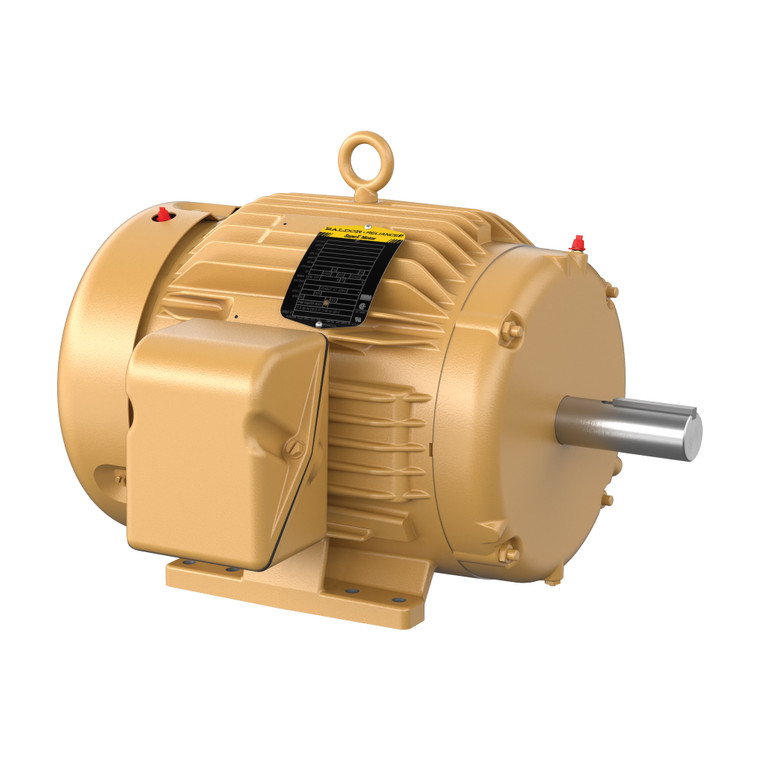

ABB Baldor-Reliance GNEM3768T 5 HP 1160 RPM 215T TEFC Three-Phase General Purpose Motor

ABB Baldor-Reliance GNEM3768T 5 HP 1160 RPM 215T TEFC Three-Phase General Purpose Motor

ABB Baldor-Reliance
SKU:
GNEM3768T
|
UPC:
781568584774
$2,842.19
Condition:
New
Current Stock:
Description
GNEM3768T
Baldor-Reliance 5 HP (3.7 kW (50 Hz)) Three-Phase General Purpose Motor
5 HP (3.7 kW (50 Hz)), 1160RPM, 3PH, 190/380//208-230/460V, 215T, TEFC
5 HP (3.7 kW (50 Hz))1160 RPM215T FrameTEFC190/380//208-230/460 V89.5 % eff

Specifications

Catalog NumberGNEM3768T
Output5 HP (3.7 kW (50 Hz))
Speed (RPM)1160
Synchronous Speed (RPM)1200
Number of Poles6
Voltage (V)190/380//208-230/460
Full Load Amps (A)15.8-14.6/7.3//17.2/8.6
Phase3
Frequency (Hz)60 / 50
Frame215T
Frame MaterialCast Iron
EnclosureTotally Enclosed Fan Cooled (TEFC)
NEMA Nominal Efficiency (%)89.5 %
Power Factor72
Service Factor1.15
Insulation ClassF
NEMA DesignA
Duty CycleContinuous
Ambient Temperature40 °C
Overall Length18.45 in
MountingF1
Shaft GroundingNo Shaft Grounding
Agency ApprovalsCE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE
Product LineGNEM, General Purpose, enclosed

Application & Design Notes

The GNEM3768T is a Baldor-Reliance three-phase general purpose motor rated 5 HP (3.7 kW (50 Hz)) at 1160 RPM in a 215T cast iron frame with a TEFC enclosure. This is a dual-rated global motor, usable at 60 Hz and 50 Hz. It delivers 89.5 % nominal efficiency at 1.15 service factor. Totally enclosed fan cooled construction suits wet, humid, and dusty locations. Class F insulation and a 1.15 service factor make it a versatile workhorse for pumps, fans, blowers, conveyors, compressors, and general industrial machines, direct on line or on a variable frequency drive.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, or application help on the GNEM3768T, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
5 HP
Speed:
1160 RPM
Poles:
6
Voltage:
190/380//208-230/460 V
Full Load Amps:
15.8-14.6/7.3//17.2/8.6 A
Phase:
3
Frequency:
60 / 50 Hz
Frame:
215T
Enclosure:
TEFC
Efficiency:
89.5%
Service Factor:
1.15
Insulation Class:
F
