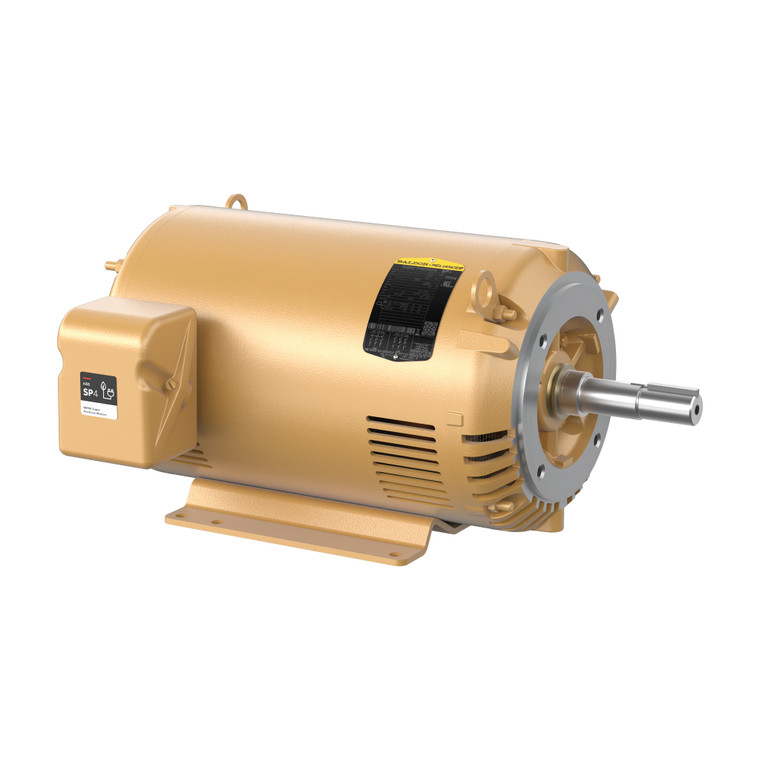

ABB Baldor-Reliance SPJMM2511T 10 HP 1180 RPM 254JM ODP Close-Coupled Pump Motor
ABB Baldor-Reliance
$3,968.07
SPJMM2511T
Baldor-Reliance 10 HP Close-Coupled Pump Motor
10HP, 1180RPM, 3PH, 230/460V, 254JM, ODP
10 HP1180 RPM254JM FrameODP230/460 V92.4 % eff
Specifications
| Catalog Number | SPJMM2511T |
| Output (HP) | 10 |
| Speed (RPM) | 1180 |
| Synchronous Speed (RPM) | 1200 |
| Number of Poles | 6 |
| Voltage (V) | 230/460 |
| Full Load Amps (A) | 29/14.5 |
| Phase | 3 |
| Frequency (Hz) | 60 |
| Frame | 254JM |
| Shaft Type | JM close-coupled pump shaft |
| Frame Material | Steel |
| Enclosure | Open Drip Proof (ODP) |
| IP Rating | IP23 |
| NEMA Nominal Efficiency (%) | 92.4 % |
| Power Factor | 69 |
| Service Factor | 1.25 |
| Insulation Class | F |
| NEMA Design | A |
| Duty Cycle | Continuous |
| Ambient Temperature | 40 °C |
| Overall Length | 25.69 in |
| Mounting | F1 |
| Shaft Grounding | No Shaft Grounding |
| Inverter | Inverter Duty |
| Product Line | Super Premium SP4, Close Coupled pump, open |
Application & Design Notes
The SPJMM2511T is a Baldor-Reliance close-coupled pump motor rated 10 HP at 1180 RPM in a 254JM steel frame. The JM close-coupled pump shaft and C-face flange mount a pump head directly to the motor, removing the separate coupling, base, and alignment of a pedestal-mounted set. SP4 Super Premium efficiency (92.4 % nominal) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost on continuous pumping duty. Open drip proof cooling suits clean, dry, indoor pump rooms. Class F insulation, 1.25 service factor, and IP23 protection. Built for water, wastewater, HVAC, irrigation, booster, and general close-coupled pumping, direct on line or on a variable frequency drive.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance close-coupled pump motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, frame and shaft selection, or application help on the SPJMM2511T, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 10 HP
- Speed:
- 1180 RPM
- Poles:
- 6
- Voltage:
- 230/460 V
- Full Load Amps:
- 29/14.5 A
- Phase:
- 3
- Frequency:
- 60 Hz
- Frame:
- 254JM
- Enclosure:
- ODP
- Efficiency:
- 92.4%
- Service Factor:
- 1.25
- Insulation Class:
- F
