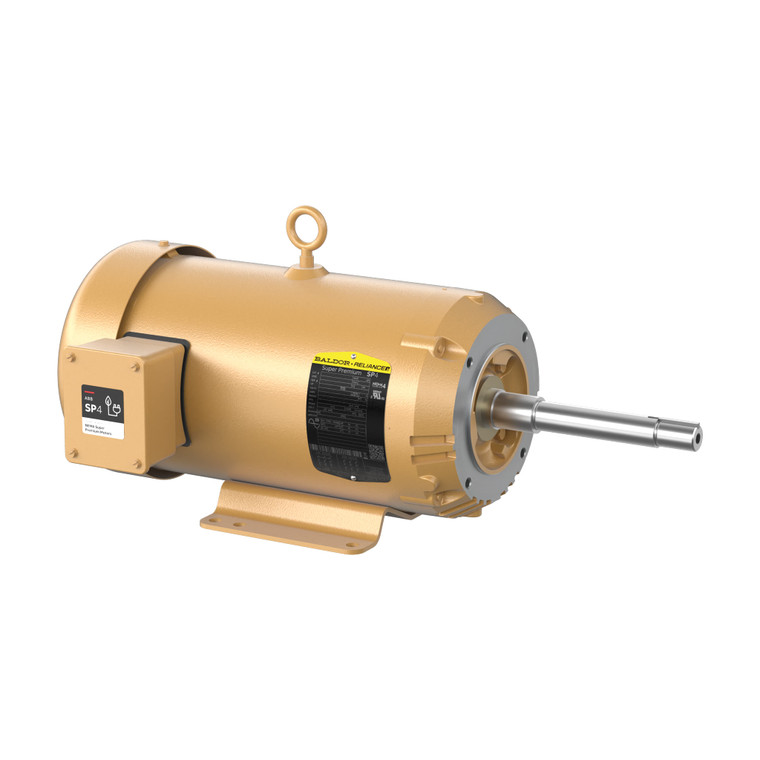

ABB Baldor-Reliance SPJPM3610T 3 HP 3500 RPM 182JP TEFC Close-Coupled Pump Motor
ABB Baldor-Reliance
$1,612.33
SPJPM3610T
Baldor-Reliance 3 HP Close-Coupled Pump Motor
3HP, 3500RPM, 3PH, 230/460V, 182JP, TEFC
3 HP3500 RPM182JP FrameTEFC230/460 V88.5 % eff
Specifications
| Catalog Number | SPJPM3610T |
| Output (HP) | 3 |
| Speed (RPM) | 3500 |
| Synchronous Speed (RPM) | 3600 |
| Number of Poles | 2 |
| Voltage (V) | 230/460 |
| Full Load Amps (A) | 6.8/3.4 |
| Phase | 3 |
| Frequency (Hz) | 60 |
| Frame | 182JP |
| Shaft Type | JP close-coupled pump shaft |
| Frame Material | Steel |
| Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| IP Rating | IP54 |
| NEMA Nominal Efficiency (%) | 88.5 % |
| Power Factor | 95 |
| Service Factor | 1.25 |
| Insulation Class | F |
| NEMA Design | A |
| Duty Cycle | Continuous |
| Ambient Temperature | 40 °C |
| Overall Length | 21.11 in |
| Mounting | F1 |
| Shaft Grounding | No Shaft Grounding |
| Inverter | Inverter Duty |
| Product Line | Super Premium SP4, Close Coupled pump, totally enclosed |
Application & Design Notes
The SPJPM3610T is a Baldor-Reliance close-coupled pump motor rated 3 HP at 3500 RPM in a 182JP steel frame. The JP close-coupled pump shaft and C-face flange mount a pump head directly to the motor, removing the separate coupling, base, and alignment of a pedestal-mounted set. SP4 Super Premium efficiency (88.5 % nominal) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost on continuous pumping duty. Totally enclosed fan cooled construction suits wet, humid, and dusty pump installations. Class F insulation, 1.25 service factor, and IP54 protection. Built for water, wastewater, HVAC, irrigation, booster, and general close-coupled pumping, direct on line or on a variable frequency drive.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance close-coupled pump motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, frame and shaft selection, or application help on the SPJPM3610T, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 3 HP
- Speed:
- 3500 RPM
- Poles:
- 2
- Voltage:
- 230/460 V
- Full Load Amps:
- 6.8/3.4 A
- Phase:
- 3
- Frequency:
- 60 Hz
- Frame:
- 182JP
- Enclosure:
- TEFC
- Efficiency:
- 88.5%
- Service Factor:
- 1.25
- Insulation Class:
- F
