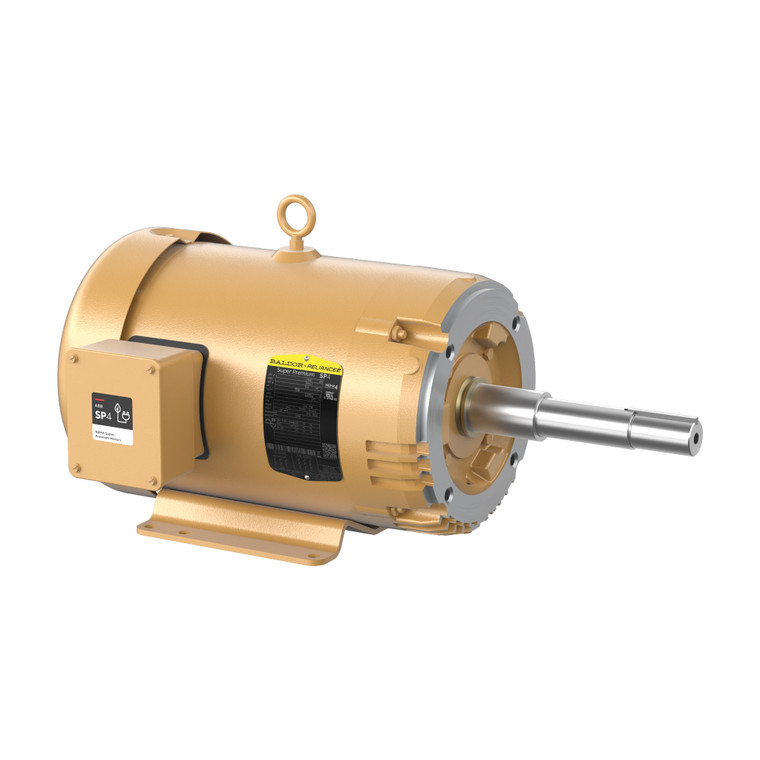

ABB Baldor-Reliance SPJPM3714T 10 HP 1775 RPM 215JP TEFC Close-Coupled Pump Motor
ABB Baldor-Reliance
$2,495.36
SPJPM3714T
Baldor-Reliance 10 HP Close-Coupled Pump Motor
10HP, 1775RPM, 3PH, 230/460V, 215JP, TEFC
10 HP1775 RPM215JP FrameTEFC230/460 V92.4 % eff
Specifications
| Catalog Number | SPJPM3714T |
| Output (HP) | 10 |
| Speed (RPM) | 1775 |
| Synchronous Speed (RPM) | 1800 |
| Number of Poles | 4 |
| Voltage (V) | 230/460 |
| Full Load Amps (A) | 26/13 |
| Phase | 3 |
| Frequency (Hz) | 60 |
| Frame | 215JP |
| Shaft Type | JP close-coupled pump shaft |
| Frame Material | Steel |
| Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| IP Rating | IP54 |
| NEMA Nominal Efficiency (%) | 92.4 % |
| Power Factor | 78 |
| Service Factor | 1.25 |
| Insulation Class | F |
| NEMA Design | A |
| Duty Cycle | Continuous |
| Ambient Temperature | 40 °C |
| Overall Length | 26.26 in |
| Mounting | F1 |
| Shaft Grounding | No Shaft Grounding |
| Inverter | Inverter Duty |
| Product Line | Super Premium SP4, Close Coupled pump, totally enclosed |
Application & Design Notes
The SPJPM3714T is a Baldor-Reliance close-coupled pump motor rated 10 HP at 1775 RPM in a 215JP steel frame. The JP close-coupled pump shaft and C-face flange mount a pump head directly to the motor, removing the separate coupling, base, and alignment of a pedestal-mounted set. SP4 Super Premium efficiency (92.4 % nominal) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost on continuous pumping duty. Totally enclosed fan cooled construction suits wet, humid, and dusty pump installations. Class F insulation, 1.25 service factor, and IP54 protection. Built for water, wastewater, HVAC, irrigation, booster, and general close-coupled pumping, direct on line or on a variable frequency drive.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance close-coupled pump motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, frame and shaft selection, or application help on the SPJPM3714T, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 10 HP
- Speed:
- 1775 RPM
- Poles:
- 4
- Voltage:
- 230/460 V
- Full Load Amps:
- 26/13 A
- Phase:
- 3
- Frequency:
- 60 Hz
- Frame:
- 215JP
- Enclosure:
- TEFC
- Efficiency:
- 92.4%
- Service Factor:
- 1.25
- Insulation Class:
- F
